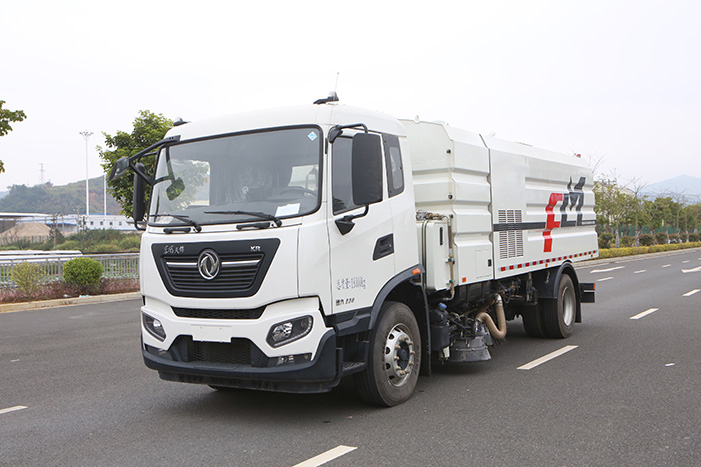

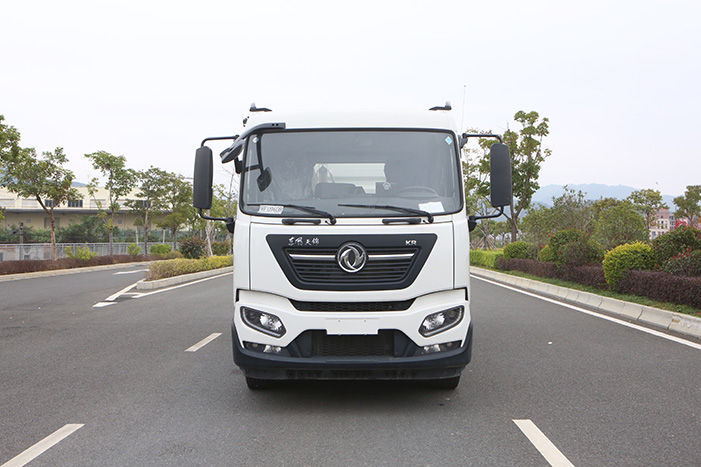

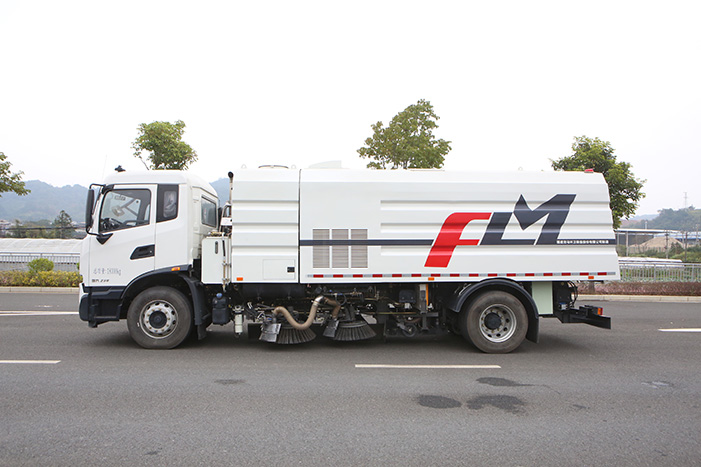

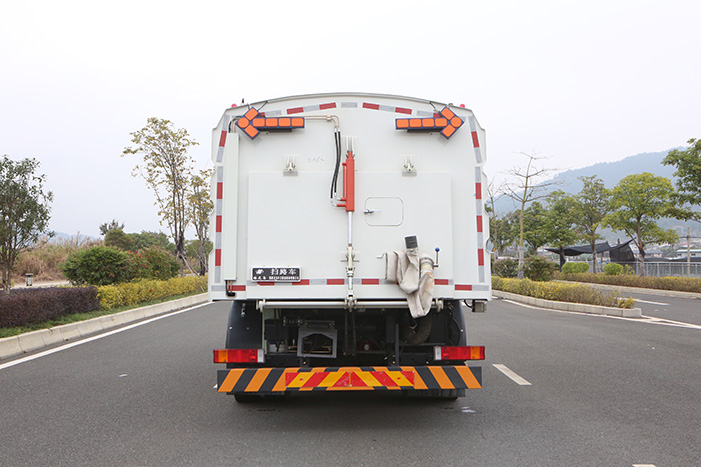

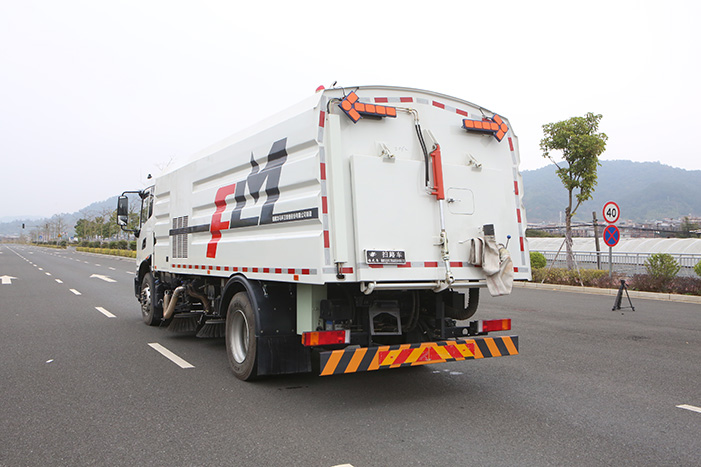

This vehicle is a new generation road sweeper combining sweeping and suction developed by FULONGMA. It is mainly suitable for mechanized cleaning and sweeping operations in city streets, municipal squares, and large factories and mines. The truck has high operating efficiency, advanced and reliable technical performance, beautiful appearance, and has distinctive FULONGMA brand characteristics.
|
Parameters |
FLM5180TSLDF6K |
|
Chassis Model |
DFH1180EX8 |
|
Emission Standard |
China VI |
|
Chassis Engine Model/Power (kW) |
D6.7NS6B230/169 |
|
Auxiliary Engine Model/Power (kW) |
QSB5.9-C210-30/154 |
|
Gross Vehicle Weight(kg) |
18000 |
|
Top Speed (km/h) |
89 |
|
Sweeping Width (m) |
3.5 |
|
Sweeping Speed (km/h) |
5〜40 |
|
Stainless Garbage Tank Volume (m3) |
7 |
|
Stainless Water Tank Volume (m3) |
6 |
|
Dimension (Lx Wx H) (mm) |
9030x2520x3190 |
Adopting dual-pneumatic fan system + central four-disc sweeper + W-type suction nozzle, a four-in-one innovative arrangement combining sweeping, flushing, blowing, and suction.
Adopt the original W-shaped central superimposed high-efficiency suction nozzle to overcome the industry problem of high-speed operation of the waste left in the middle of the suction port.
Use an independent fan to suck and sweep the dust, and at the same time perform auxiliary blowback to the main suction port, while controlling the dust from the road sweeper operation, it effectively improves the cleaning rate of garbage collection.
Continuous operation time> 2.5 hours, the longest operation distance of high-speed cleaning operation is more than 100km.
Working on heavily polluted roads, the operating speed can reach 3 times that of conventional sweeping trucks, effectively improving operating efficiency and reducing operating fuel consumption per route.
The standard high-pressure water pump is equipped with a 20-meter automatic retractable hose reel. The tank adopts an internal inclined surface structure, and a high-pressure water cleaning device is installed inside, which can quickly flush the tank. (Better than the traditional road sweeper in the industry)
The sweeping disc adopts a full-wire sweeping brush, and the sweeping disc speed can be adjusted in a large range to ensure a good cleaning effect under various pollution conditions.e suction nozzle and extend the life of the rollers.
