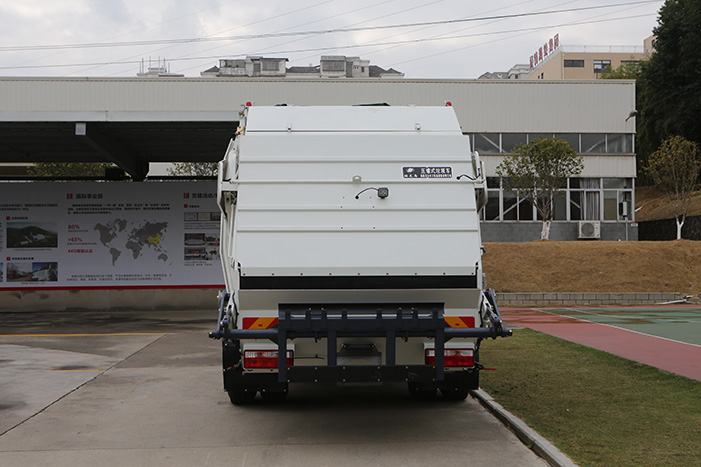

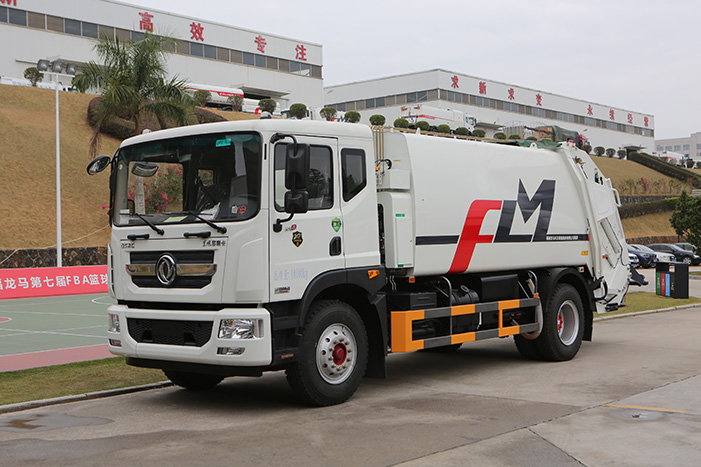

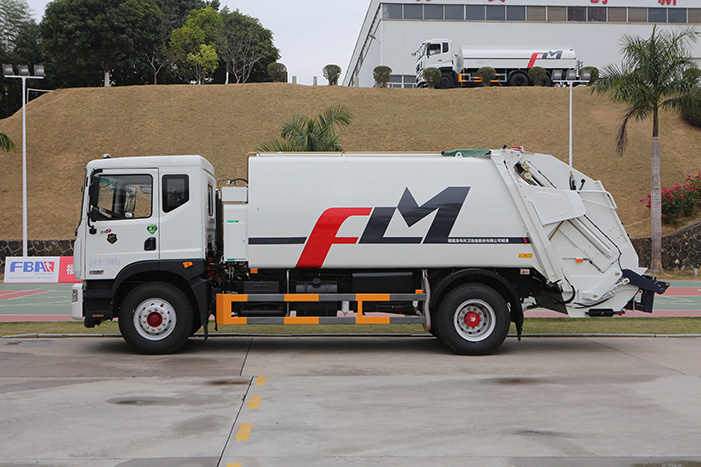

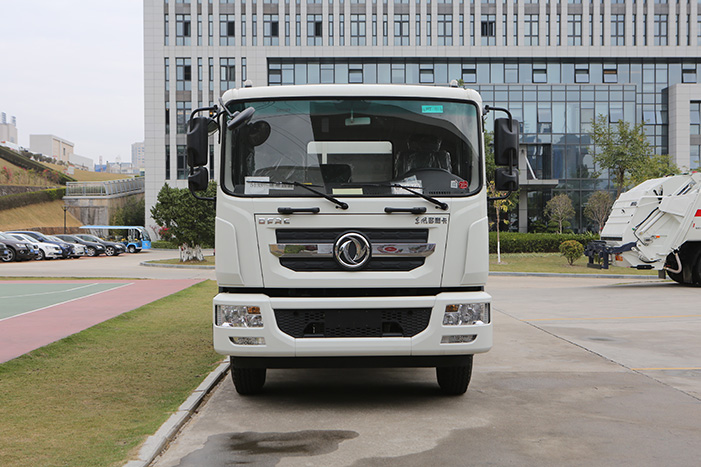

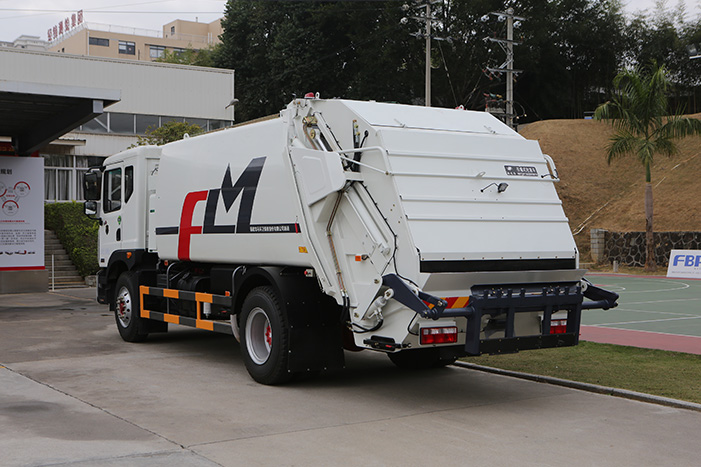

This truck is a special vehicle for garbage collection and transfer developed by FULONGMA with the introduction of international advanced technology. It has the clear advantages of large garbage loading, no secondary pollution, reliability and durability.
|
Parameters |
FLM5180ZYSDG6K |
|
Chassis Model |
EQ1185LJ9CDE |
|
Emission Standard |
China VI |
|
Engine Model/Power (kW) |
B6.2NS6B210/154 |
|
GVW(kg) |
18000 |
|
Top Speed (km/h) |
105 |
|
Garbage Tank Volume (m3) |
12.5 |
|
Sewage Tank Volume (L) |
850 |
|
Dimension (LxWxH)(mm) |
8855x2500x3025 |
The U-shaped integrally formed truss slot with Japanese technology is adopted as the movable guide rail of the garbage pushing plate, which has strong pressure resistance and good deformation resistance.
The main components such as the garbage tank are made of high-strength weather-resistant steel plates with arc-shaped design, which has beautiful appearance, large effective volume, outstanding overall structural performance, and strong impact resistance.
Equipped with a large-capacity sewage tank, combined with a diversion sewage collection device, the sewage that leaks between the hopper and the garbage tank due to the failure of the sealing strip can be drained into the special sewage collection tank, effectively preventing the leakage of sewage secondary pollution.
The sliding block of the ejector is made of high wear resistance alloy material with long service life.
There are multiple safety protection measures such as the sliding board up and the scraper up button, the emergency stop button, the interlock switch to prevent the hopper from falling, the safety brace, and the self-locking function of the hopper lifting cylinder to ensure the safety of personnel.
Using the intelligent control system, centralized control can be achieved in the cab. With automatic and manual dual control modes, it can control the garbage truck’s operation in the cab, the middle and the rear of the vehicle, which is convenient and efficient.
