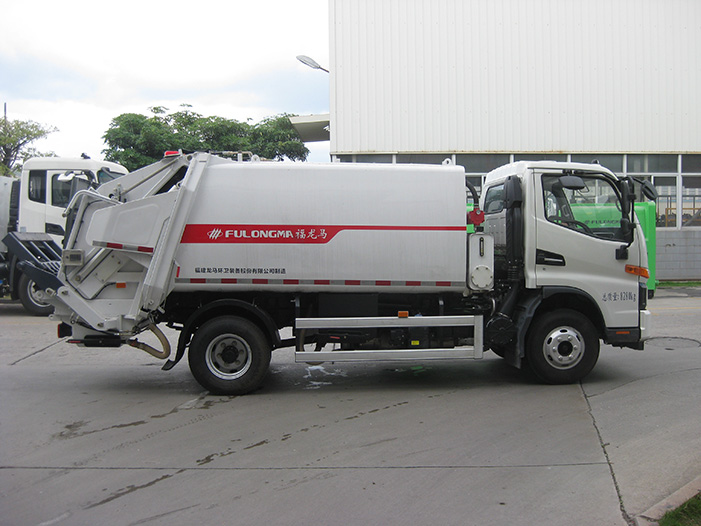

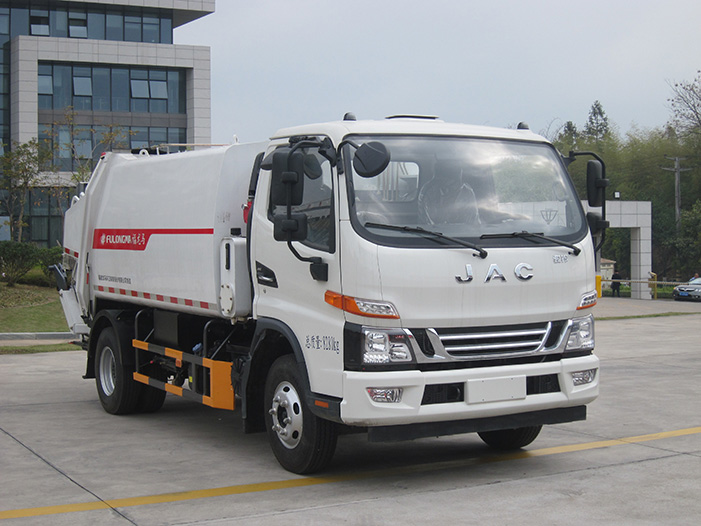

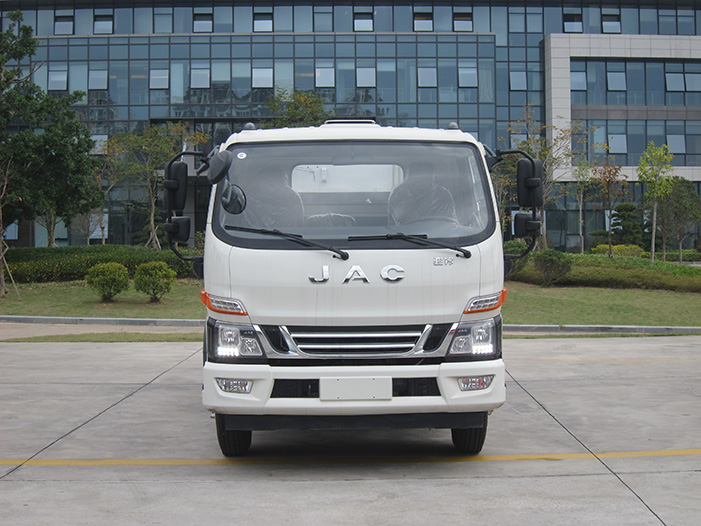

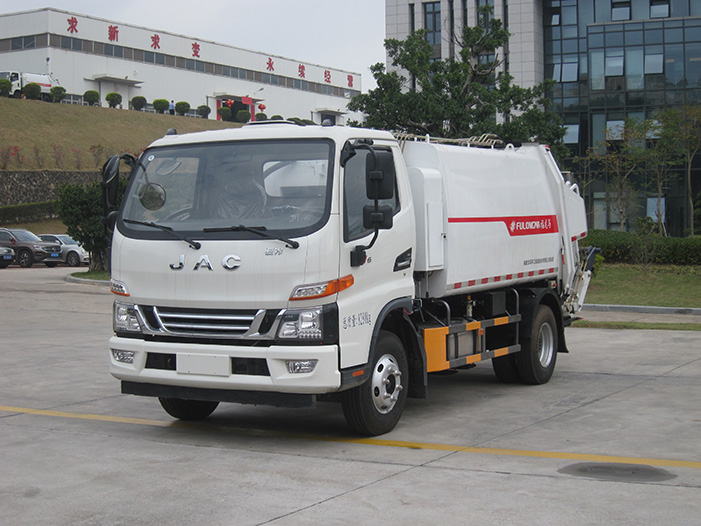

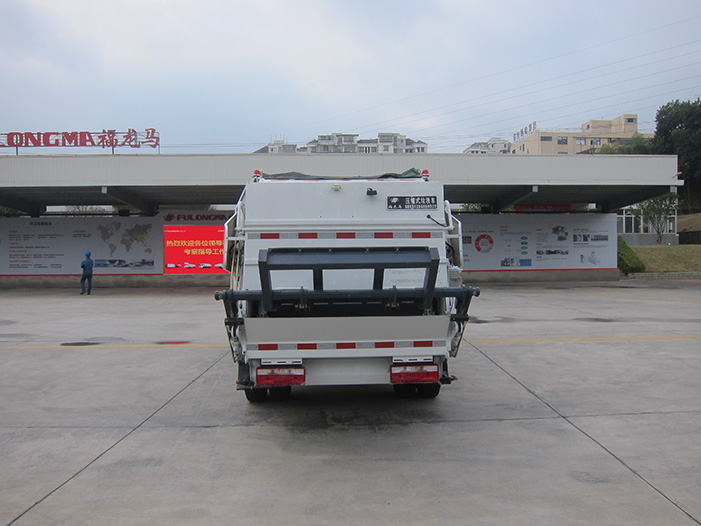

This truck is a special vehicle for garbage collection and transfer developed by FULONGMA with the introduction of international advanced technology. It has the clear advantages of large garbage loading, no secondary pollution, reliability and durability.
|
Parameters |
FLM5080ZYSJQ6 |
|
Chassis Model |
HFC1081P31K1C7ZS |
|
Emission Standard |
China VI |
|
Engine Model/Power(kW) |
D30TCIF2/120 |
|
GVW(kg) |
8280 |
|
Top Speed (km/h) |
100 |
|
Garbage Tank Volume (m3) |
≥6.5 |
|
Sewage Tank Volume (L) |
≥310 |
|
Compression Density (t/m2) |
0.65~0.8 |
|
Hydraulic Pressure (MPa) |
18 |
|
Dimension (Lx Wx H) (mm) |
6795x2150x2460 |
The U-shaped integrally formed truss slot with Japanese technology is adopted as the movable guide rail of the garbage pushing plate, which has strong pressure resistance and good deformation resistance.
The truck is equipped with two different material side guardrails, which users can choose depending on their needs.
The main components such as the garbage tank are made of high-strength weather-resistant steel plates with arc-shaped design, which has beautiful appearance, large effective volume, outstanding overall structural performance, and strong impact resistance.
A sealing cover plate is set at the opening of the hopper, which can effectively prevent the secondary pollution of garbage and odor.
Equipped with a large-capacity sewage tank, combined with a diversion sewage collection device, the sewage that leaks between the hopper and the garbage tank due to the failure of the sealing strip can be drained into the special sewage collection tank, effectively preventing the leakage of sewage secondary pollution.
The joint between the hopper and the tank body adopts adjustable hydraulic locking and full sealing technology, which has good sealing performance.
The sliding block of the ejector is made of high wear resistance alloy material with long service life.
