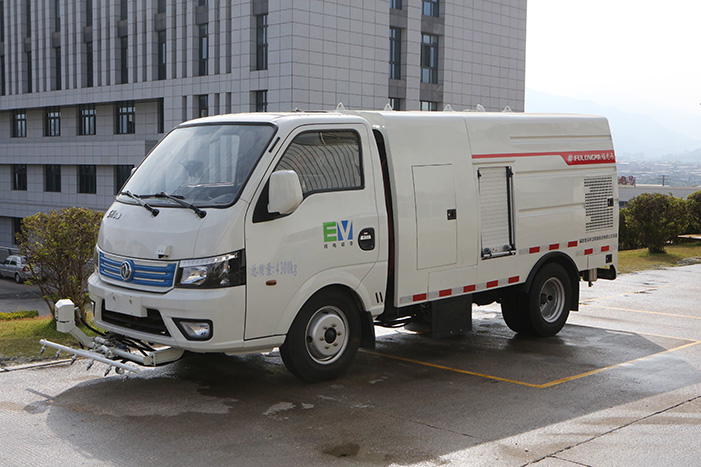

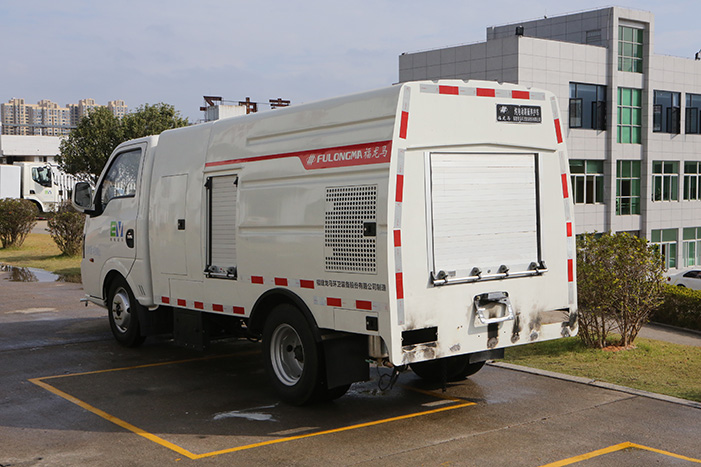

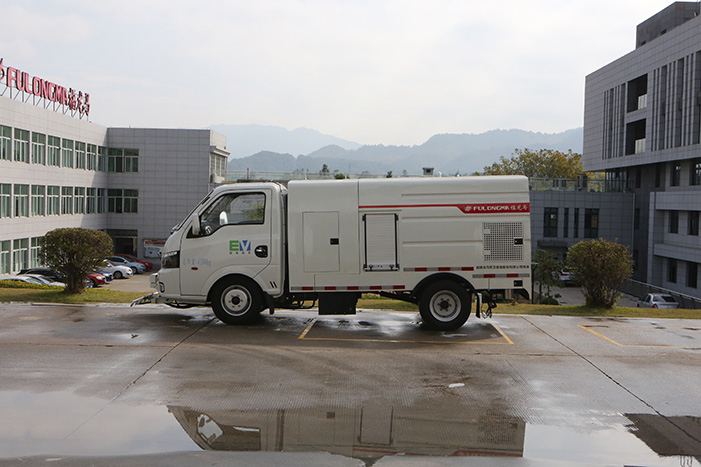

The model is compact and flexible, fully equipped, versatile, easy to operate, and reliable in operation. It is very suitable for cleaning operations in areas such as urban sidewalks, pedestrian streets, and other areas, such as road cleaning, dustbin cleaning, and small advertisement removal.
|
Main Parameters |
FLM5041TYHDTBEV |
|
Chassis Model |
EQ1041TTZEVJ |
|
Chassis Motor Model/Power(kW) |
TZ220XS504/60 |
|
Chassis Motor Type/Cooling Method |
PMSM/Water Cooling |
|
Chassis Motor Manufacturer |
CATL |
|
Chassis Battery Type/Capacity (kWh) |
Lithium Iron Phosphate Battery/66.84 |
|
Top Speed (km/h) |
90 |
|
Travel Range (km) |
255 |
|
Water Tank Volume (m3) |
1.8 |
|
Cleaning Width (m) |
≥1.5 |
|
Continuously Working Time (min/Full Tank) |
Front Cleaning & Hand Push Cleaning ≥60/Water Gun^240 |
|
Front Sprayer Pressure (MPa) |
≥9 |
|
High-pressure Pump FLow(L/min) |
≥34 |
|
High-pressure Pump Rated Pressure (MPa) |
≥17 |
|
High-pressure Pump Motor Power (kW) |
≥7.5 |
|
External Size (L*W*H)(mm) |
5500x1650x2160 |
The vehicle’s drive motor drives the vehicle and the high-pressure water pump works. The energy source of the vehicle is a lithium iron phosphate battery pack.
The cleaning device of the truck consists of a front cleaning device, a columnar single-point cleaning device, a manual spray gun, and a hand-push cleaning device. The device has diversified cleaning functions and can meet the cleaning and maintenance work of roads with different pollution levels.

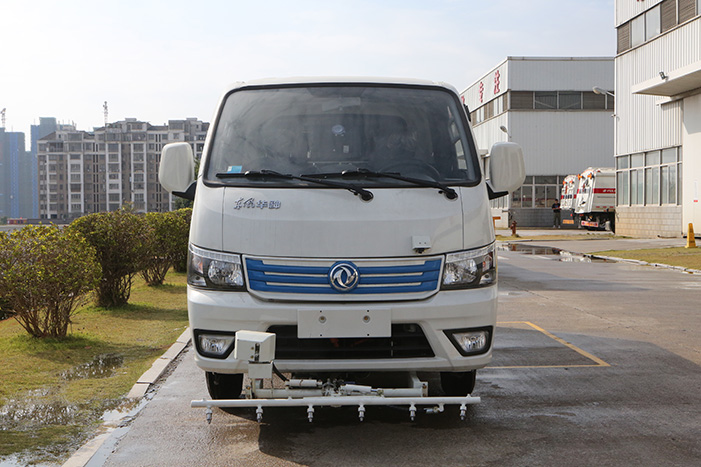

When the front cleaning device is working, the high-pressure water flow can form a complete cleaning curtain. It can be controlled by a hydraulic cylinder to rotate up and down by 12° and swing around 20°.
Good cleaning effect. The operation of the column-shaped single-point cleaning device is all-electric control, and the driver can complete the operation in the cab. The device can swing up, down, left, and right in all directions, and is suitable for removing local dirt on roads.

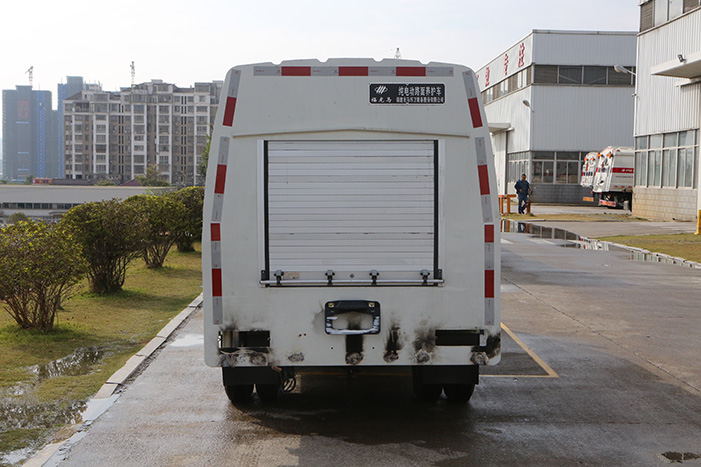

The truck is equipped with a manual high-pressure spray gun at the rear and together with a 20-meter hose. To cope with various working conditions, it is equipped with 4 kinds of professional nozzles, which are the nemesis of small advertisements posted on the street.
The truck is also equipped with a lightweight, compact water broom with a splash-proof protective cover, which can clean and sweep areas such as roadside rest benches, narrow platforms, and walls.
The front of the truck body is equipped with a down-view camera, which can be used to observe the road condition and cleaning effect at any time through the color LCD screen in the cab.
A variety of practical devices can be selected according to actual operation needs, such as upper rear spray device and lower rear spray device for cooling and dust reduction, and adjusting air humidity. Side washing guardrail device with large water flow, high pressure, and anti-collision function.
