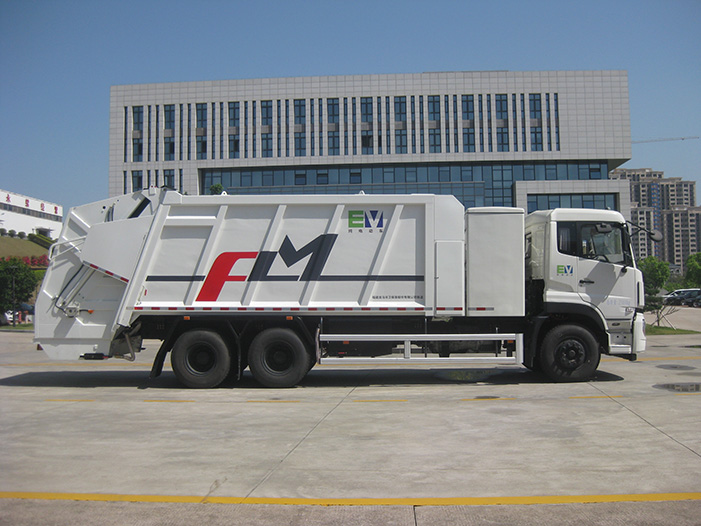

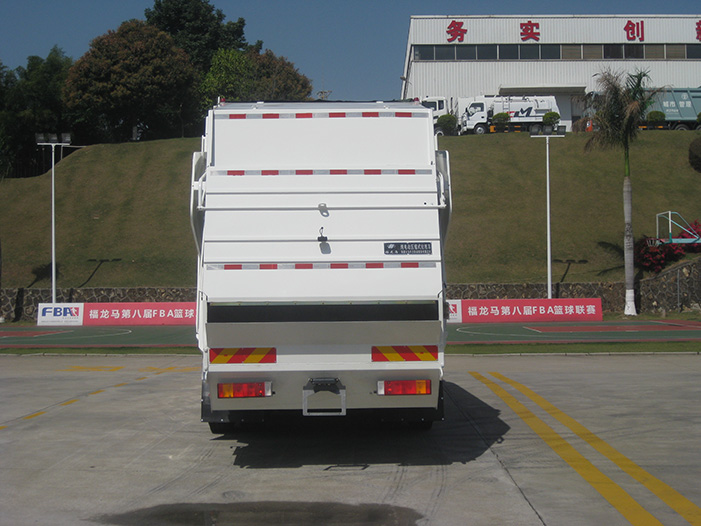

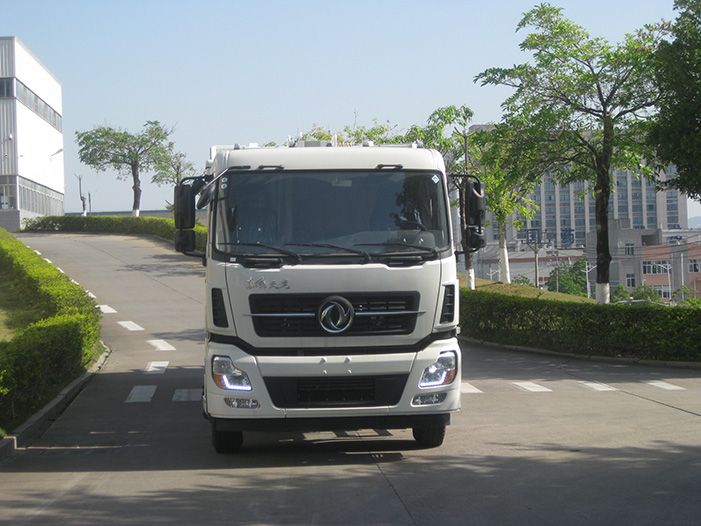

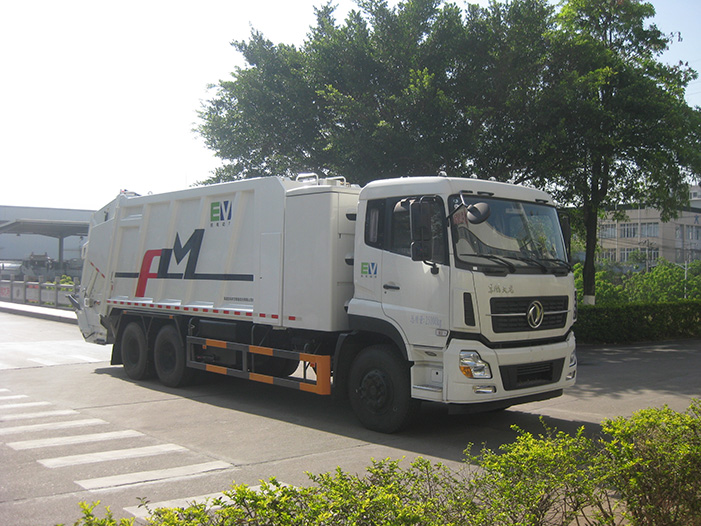

This truck is a new type of sanitation vehicle specially used for collecting and transporting garbage. It mainly collects and transports urban domestic garbage and is an ideal garbage collection and transportation vehicle for urban sanitation departments, factories, mines, and docks.
| Main Parameters | FLM5250ZYSDFEV |
| Chassis Model | EQ1250GEVJ1 |
| Chassis Motor Model | TZ410XS-LKM2501 |
| Chassis Battery Mfr./Type/Capacity(kWh) | CATL/Lithium Iron Phosphate Battery/314.14 |
| travel Range (km) | 250 |
| Compression Method | Two Way Compression |
| Compactor Working Cycle Time(s) | ≤25 |
| Dumping Cycle Time (s) | ≤83 |
| Lifter Cycle Time (s) | ≤11 |
| GarbageTankVolume(m3) | 20 |
| Sewage Tank Volume (L) | 1140 = front (L&R) (380+380) +rea r 380 |
| Garbage Compression Density (t/m3) | 0.65-048 |
| Maximum Crushing Force (kN) | 186 |
| Maximum Ejecting Force (kN) | 248 |
| Hydraulic System Working Pressure (Mpa) | 21 |
| External Size (LxWxH) (mm) (Standard Bin} | 11550x2530x3590 (Bin Lifter)/11100x2530x3590 (None) 11550x2530x3590 (Bucket Lifter)/11440x2530x3590 (Gantry &Bin Lifter) |
The high-strength U-shaped integrally formed channel steel is used as the movable guide rail of the garbage ejector, which has strong pressure resistance and good deformation resistance.
The main components such as the trash can are made of corrosion resistant steel plate with arc shape design, which is simple and beautiful, large effective volume, outstanding overall structural performance, and strong impact resistance.
The sewage tank of the truck combined with a diversion-type sewage collection device, which can divert the sewage that leaks between the hopper and the garbage tank body due to the failure of the sealing strip to the special sewage collection tank.
The joint between the hopper and the tank body adopts adjustable hydraulic locking and full sealing technology, which has a good sealing performance.
The sliding block of the ejector is made of high wear resistance alloy material with long service life.
There are multiple safety protection measures such as the sliding board upward, the scraper rotating button, the emergency stop button, the interlock switch to prevent the hopper from falling, the safety brace, and the self-locking function of the hopper lifting cylinder to ensure the safety of personnel.
The intelligent control system of the controller is adopted, which can be controlled centrally in the cab. Equipped with automatic and manual dual control modes, it can control the operation of garbage trucks in the driver’s cab, middle compartment, rear compartment, etc., which is convenient and efficient.
Equipped with night work lights to facilitate night work for sanitation workers.
Equipped with a two-way compression function, high compression efficiency, and large garbage loading capacity. When unloading, after the hopper is lifted into place, the scraper and slide plate automatically realize a cycle to remove the garbage remaining in the hopper.
According to user needs, two side guards of different materials can be installed.
