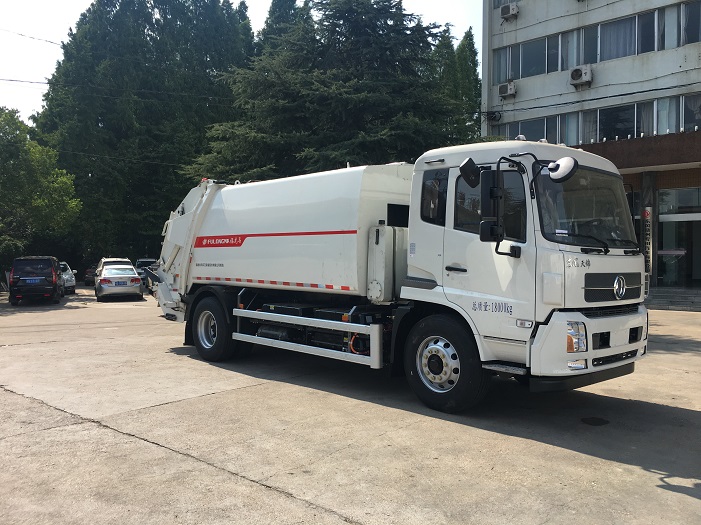

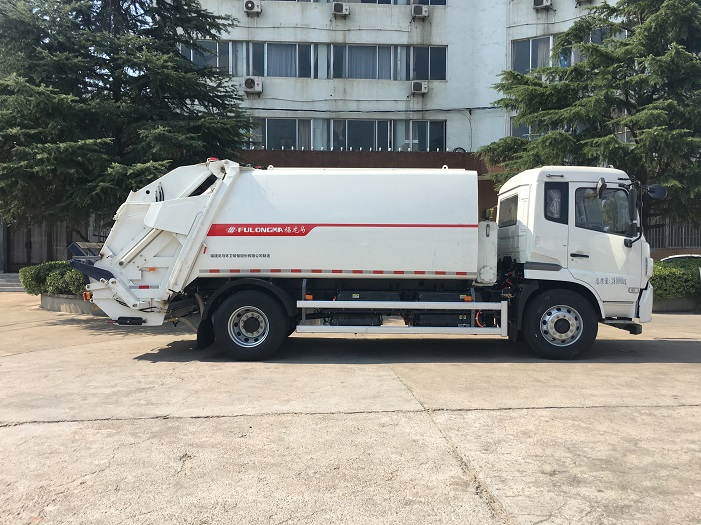

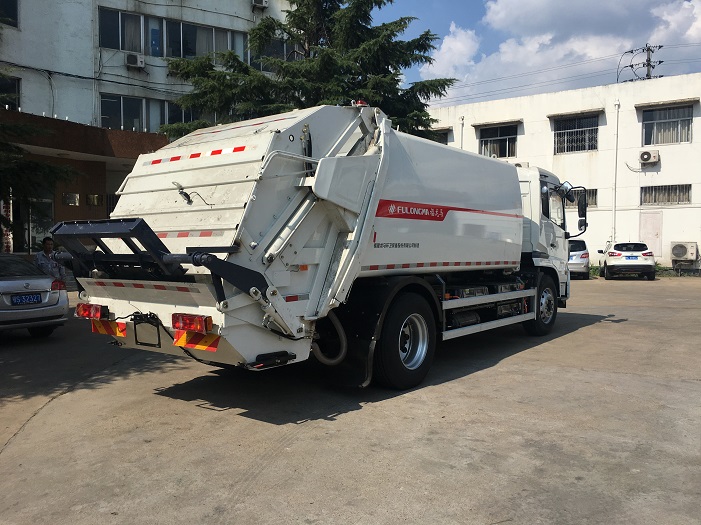

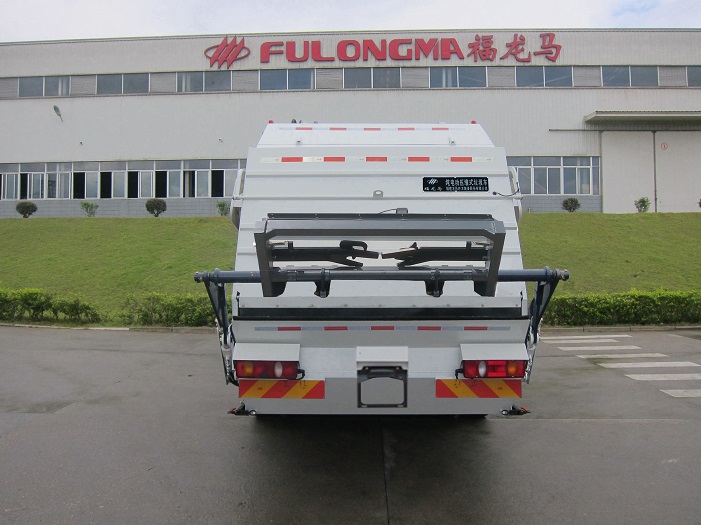

Electric Garbage Compactor Truck – FLM5180ZYSDFBEVK

In order to actively respond to the national new energy policy and meet the needs of new energy products in the market, Fulongma is dedicated to creating the latest “pure electric compression garbage truck”. This vehicle is a new type of special sanitation vehicle specially used for collecting and transporting garbage. It mainly collects and transports urban domestic garbage. It is an ideal garbage collection and transportation vehicle for urban sanitation departments, factories, mines, and docks.



Main Parameters

Battery Capacity (kWh)

162.3

Refuse Container Capacity (m³)

12.5

Hopper volume(m³)

1.1

Compacting cycle time(s)

≤17

Control mode

Automatic/manual

Loading cycle time(s)

≤11

Dumping cycle time(s)

≤55

FEATURES

U-shaped integrally formed truss troughs with high strength from Japanese technology are used as movable guide rails for garbage push plates, which have strong compression capacity and good resistance to deformation;

The main components such as the container are made of Shanghai Baosteel B480GNQR high-strength weather-resistant steel

The sealing cover is set at the opening of the filler, which can effectively prevent the secondary pollution of garbage and odor;

Equipped with a large-capacity sewage tank, combined with a diversion sewage collection device, the sewage leaked between the filler and the garbage box due to the failure of the sealant strip can be drained to a dedicated sewage collection tank, which can effectively prevent the leakage caused by sewage. Secondary pollution;

The joint of the stuffer and the box adopts adjustable hydraulic locking full sealing technology, which has good sealing performance.

The push plate slider is made of highly wear-resistant alloy material and has a long servicCe life;

Equipped with a number of safety protection measures such as slide up, scraper turning up button, emergency stop button, interlock switch to prevent the filler from falling, safety brace, and self-locking function of the filler lifting cylinder, to ensure personnel safety;

The intelligent control system of the controller can be used for centralized control in the cab. Equipped with two sets of automatic and manual control modes, it can control the operation of the garbage truck in the driver’s cab, the middle of the carriage, and the rear of the carriage. It is convenient and efficient;

Equipped with night work lights to facilitate sanitation workers at night;

Equipped with two-way compression function, high compression efficiency and large garbage load. When unloading, when the filler is lifted into place, the scraper and slide plate automatically realize a cycle to remove the garbage remaining in the filler;
