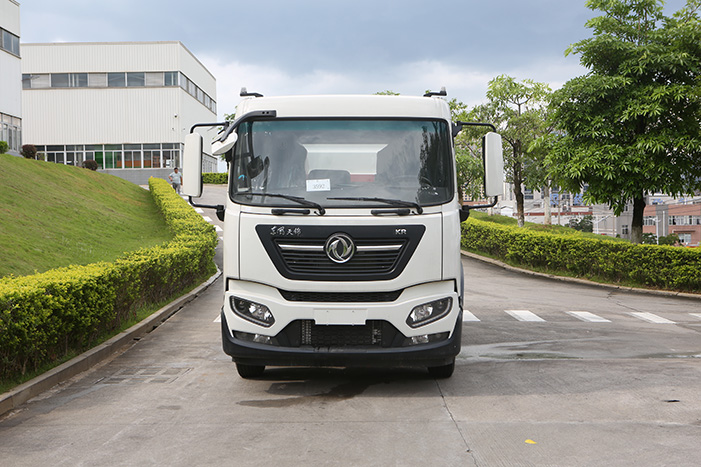

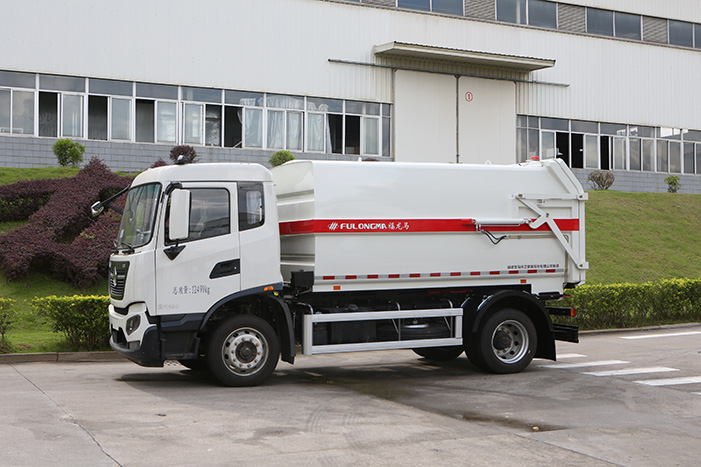

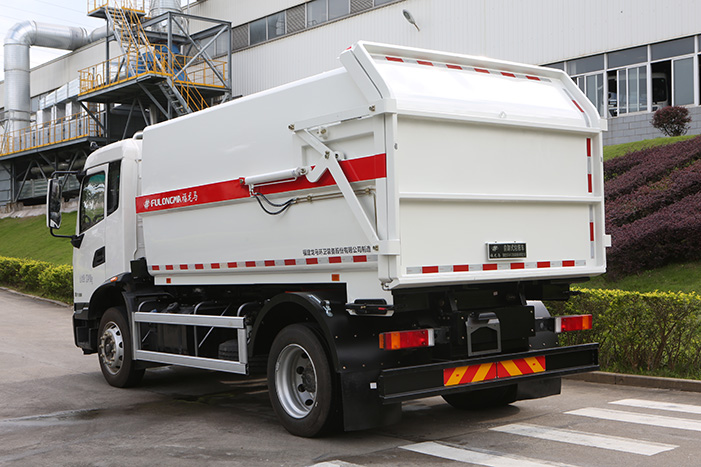

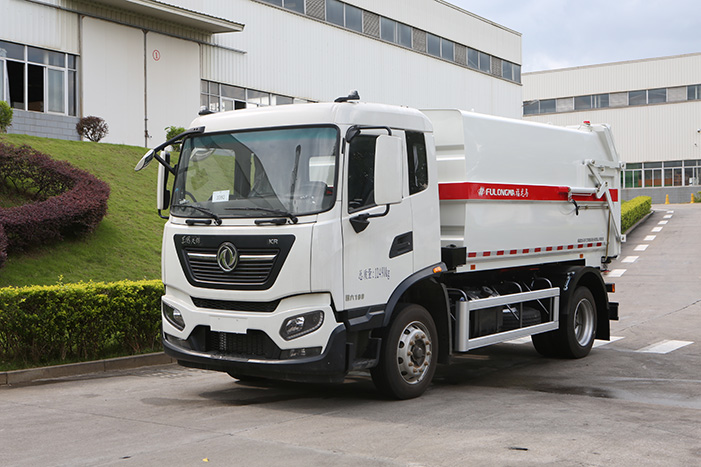

As the new generation of waste collection vehicles, this truck has a breakthrough in its operation method. Its tank adopts high-strength weather-resistant board roll forming, high strength, light weight and strong load capacity. This model is suitable for docking with vertical or buried garbage stations to transfer compressed household garbage.
|
Parameters |
FLM5120ZDJDF6 |
|
Chassis Model |
DFH1120E1 |
|
Emission Standard |
China VI |
|
Engine Model/Power (kW) |
D4.5NS6B190/140 |
|
GVW(kg) |
12490 |
|
Top Speed (km/h) |
89 |
|
Dumping Method |
Tipping |
|
Dumping Angle ( ° ) |
45 |
|
Garbage Tank Volume (m3) |
13 |
|
Sewage Tank Volume (L) |
60 |
|
Dimension (LxWxH) (mm) |
6500x2530x3120 |
The sidewall of the truck body is formed by rolling, the shape adopts an arc transition, and the material is made of a high-strength weather-resistant steel plate without reinforcing ribs.
The truck is equipped with a national patent adjustable tailgate opening and closing sealing device to prevent leakage of garbage.
The dual-cylinder dump structure is adopted to improve the stability of the truck during the dumping of garbage.

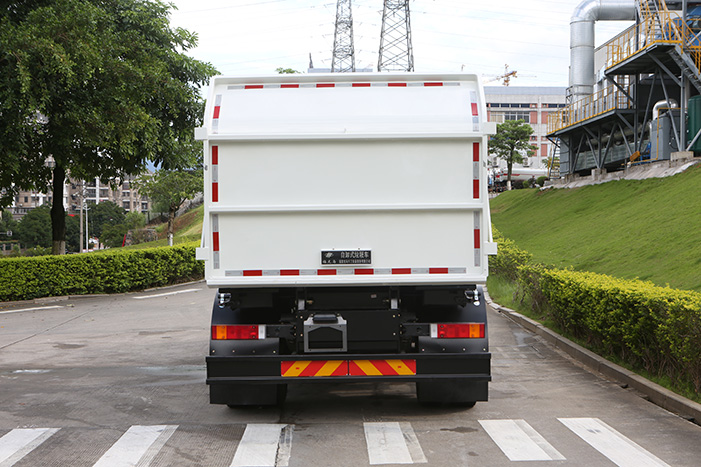

There are two sewage collection tanks at the rear of the carriage to ensure that no secondary pollution will be caused during garbage transportation.
The truck has an electric control and manual dual system and adopts a multi- operation control mode: in the cab and the right rear side of the cab, operations such as tank dumping, tailgate opening, closing can be performed.
