This truck is a special vehicle for efficient washing operations developed by FULONGMA. It mainly uses low-level water flow to flush road dust, achieving the effect of cleaning and cooling. The truck has a multi-functional operation mode and can be widely used in sanitation, municipal, and landscaping maintenance.
|
Parameters |
FLM5251GQXDF6S |
|
Chassis Model |
DFH1250BX1 |
|
Emission Standard |
China VI |
|
Chassis Engine Model/Power (kW) |
B6.2NS6B245/180 |
|
Payload (kg) |
15315 |
|
Top Speed (km/h) |
89 |
|
Tank Volume (m3) |
≥16.08 |
|
Washing Width (m) |
≥24 |
|
Sprinkling Speed (km/h) |
≥16 |
|
Rear Water Gun Range (m) |
≥50 |
|
Sprinkling Pump Head (m) |
110 |
|
Sprinkling Pump Flow (m3/h) |
50 |
|
Dimension (Lx Wx H) (mm) |
9540x2530x2900 |
It adopts self-priming centrifugal pump. The water pump takes power from the chassis engine through the drive shaft. It works smoothly and has a high transmission efficiency.

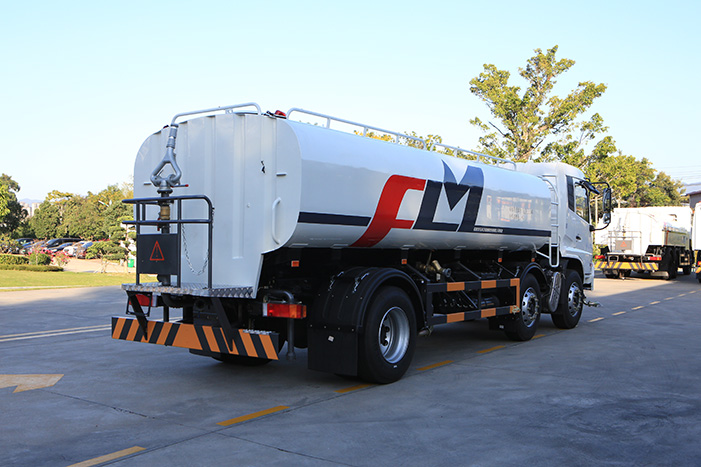

The rear high-pressure water gun is easy to operate and has a wide range of working angles. It can be used to clean objects of various heights and can wash filthy corners that are not easy to reach. It also has an auxiliary firefighting function, and the high-pressure spray can be adjusted into a column or mist shape.

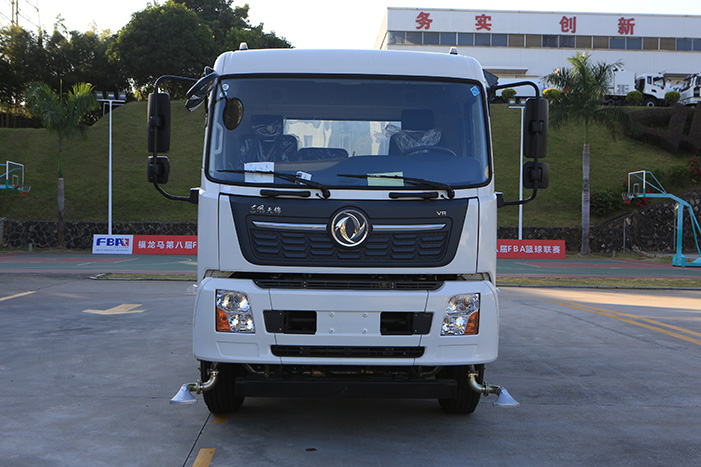

This truck is equipped with left and right side flushing nozzles and the nozzles can be adjusted at will by 360° left and right, and 360° up and down.

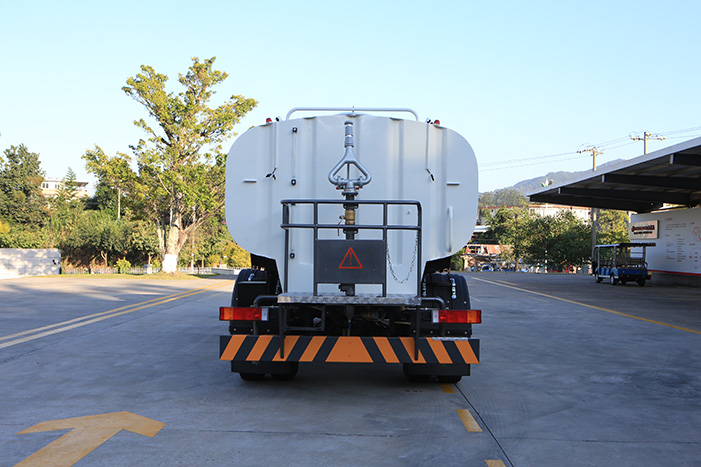

There are two rear sprinklers on the rear bumper, which are used for daily sprinkling to increase humidity and reduce dust on the road.
The switch control valves and sprinkler system pipes are made of corrosion-resistant materials. The water storage tank is made of a high-strength steel plate, and the interior is treated with a special process to prevent corrosion. A stainless-steel tank is also optional.
The control of the truck adopts a highly reliable, pollution-free advanced pneumatic system, and all road operation functions can be operated in the cab.
The structure is compact and reasonable, the volume of the water tank is large, and has a long operating time.
The water tank is equipped with a low water level sensor alarm system, which can automatically sound when the water level is low.
