The scope of application and performance characteristics of FULONGMA’s latest 7-ton manure suction truck

2022-02-09 13:43:37

Share to:

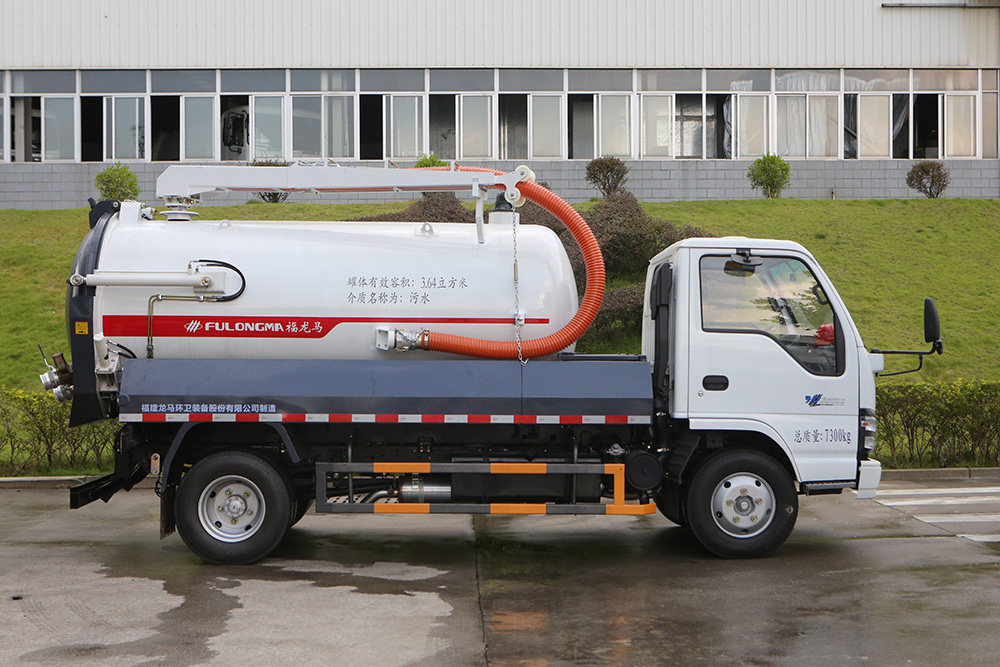

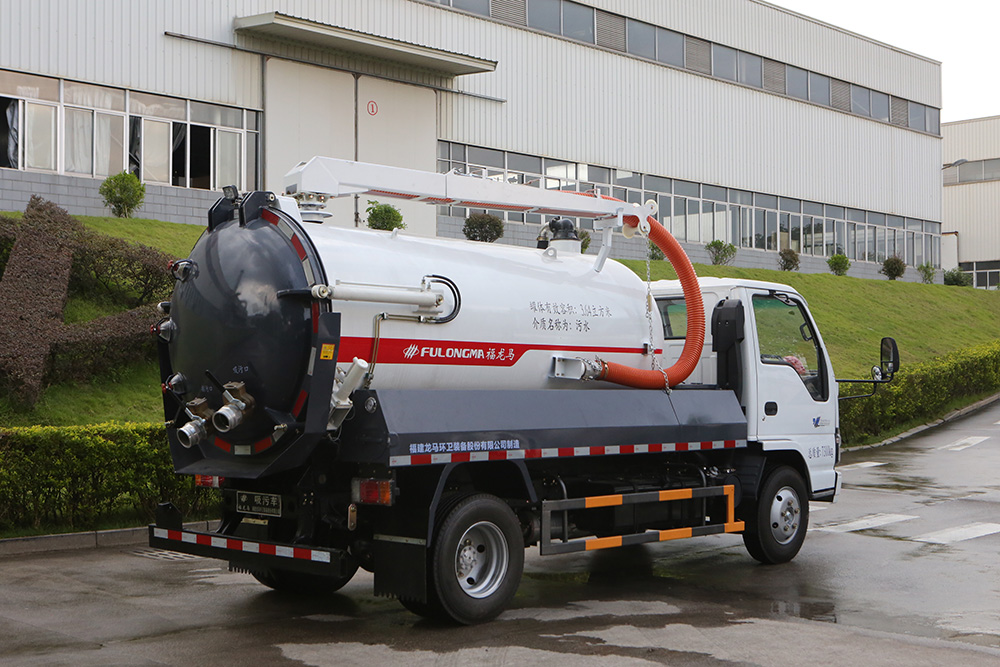

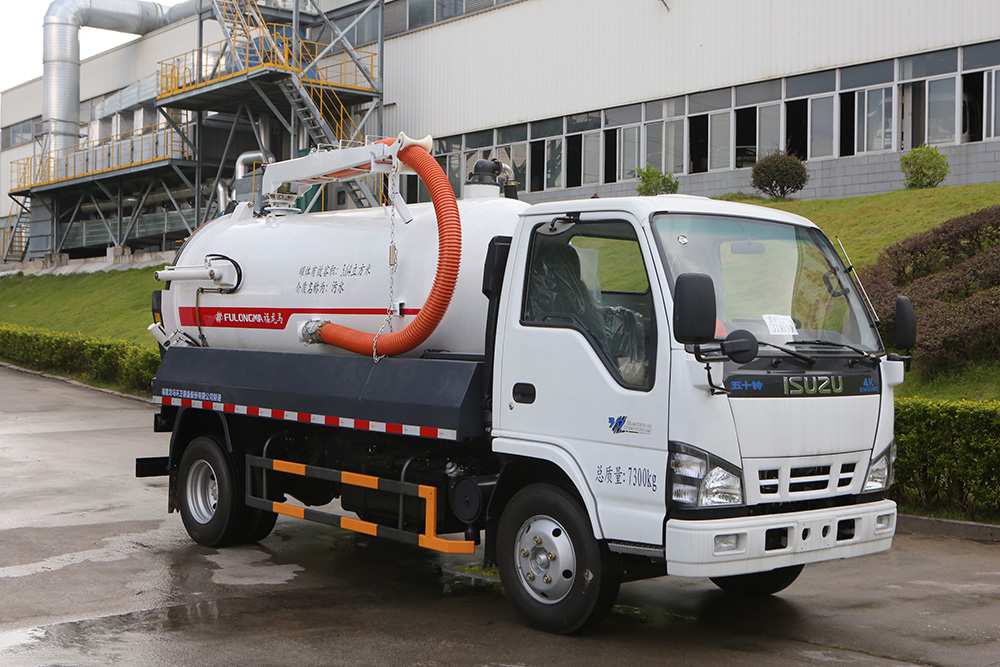

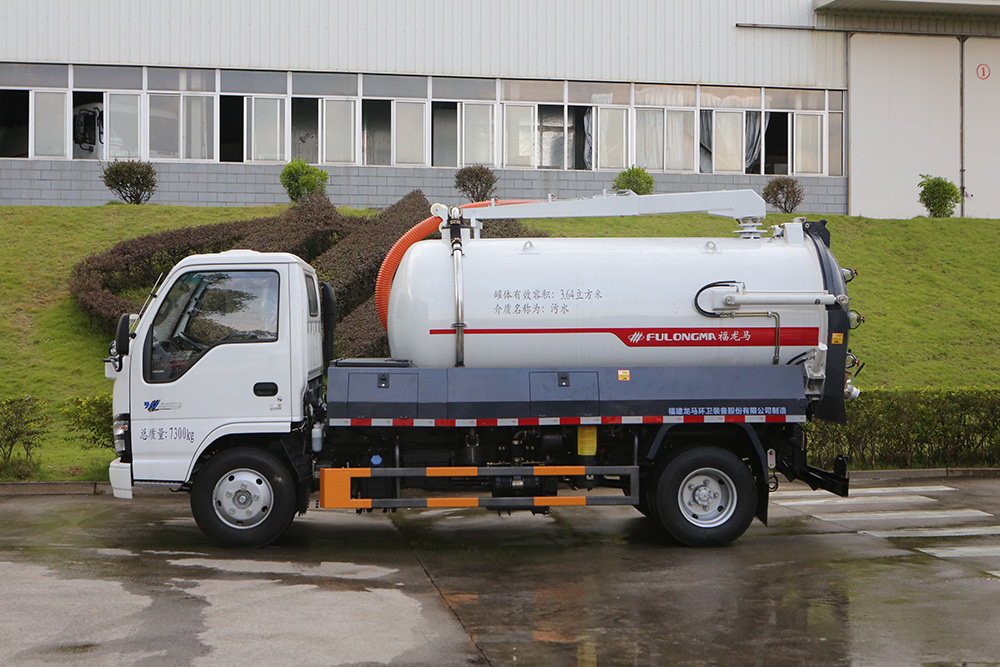

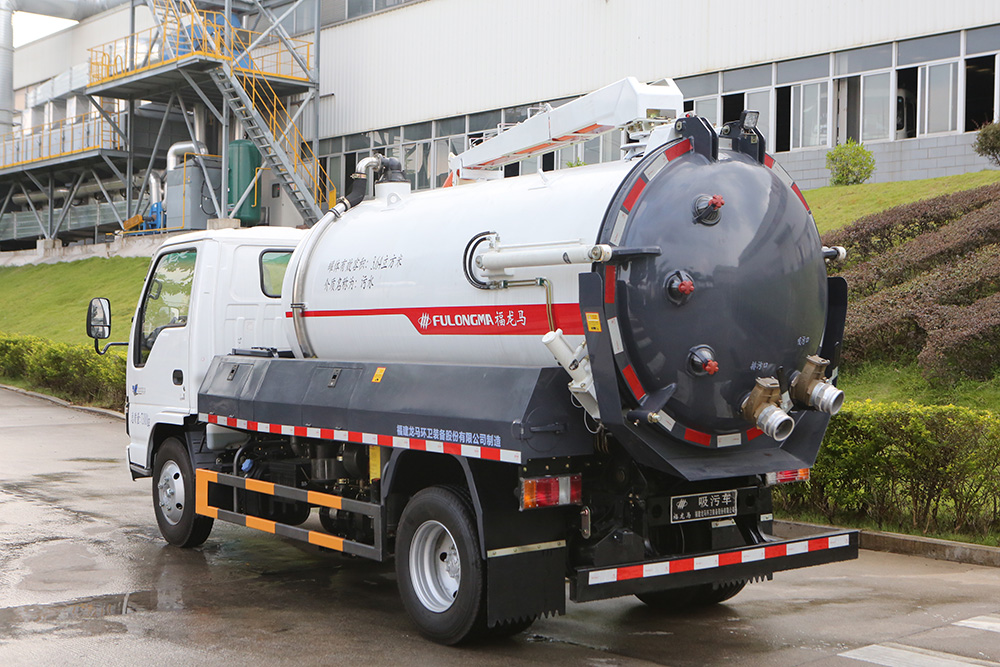

FULONGMA’s latest 7-ton fecal suction truck can be used to suck feces, sewage, sludge slurry, and liquid mixed with small suspended debris. It has the characteristics of high suction efficiency, self-priming, self-draining, and direct irrigation. It is widely used in large, medium, and small-town sanitation, municipal administration, agriculture, chemical industry, factories and mines, property communities, the vacuum suction pump can be self-priming and self-discharging.

latest 7-ton manure suction truck

01. Scope of application of manure suction truck

Mainly for urban and rural sanitation departments to pump and transport manure and other sewage. It is suitable for pumping feces, sewage, sludge slurry, and liquid mixed with small suspended debris, suitable for sanitation, large, medium, and small industrial and mining enterprises, communities, schools, septic tank cleaning and transfer, urban pipeline cleaning, factory biogas slurry Slag cleaning, etc.

latest 7-ton manure suction truck

02. Suction and discharge system of manure suction truck

It adopts a high-quality vacuum pump with low working noise. It is equipped with a 6000mm long suction pipe, and the suction depth can reach 5.5 meters. The end is equipped with an anti-suction collapse device, which is safe and reliable.

latest 7-ton manure suction truck

03. The working principle of the fecal suction truck

When sucking sewage, the vacuum pump runs to discharge the air in the tank, and the air pressure is used to press the dirt into the tank. When the sewage is discharged, the vacuum pump operates to increase the internal pressure of the tank to force the dirt out of the tank. Because it relies entirely on vacuum pump operation to absorb and discharge waste, it can only pump light type waste, which is generally used in facilities such as farms and toilets.

latest 7-ton manure suction truck

04. Performance characteristics of the fecal suction truck

1. Low fuel consumption, strong and anti-wear life, easy to observe the suction and discharge of biogas slurry, easy to operate, high suction efficiency, oil-vapor separation, steam-water separation, and other characteristics.

2. The tank body is rolled and formed at one time, the box body has a large volume, a large load capacity, it is not easy to corrode, and it can be used for a long time without fear of the long-term operation.

latest 7-ton manure suction truck

3. With stable performance and reliable quality, the sewage suction truck is mainly used for cleaning vehicles in the environment of sewage ditches and sewers.

4. The high-quality chassis of Dongfeng is selected to reduce exhaust pollution, have superior driving performance, and have stable and reliable quality.

5. There is a full tank alarm device on the top, which can automatically alarm and remind when the tank is full to avoid sucking sewage into the vacuum pump and improve the working reliability of the fecal suction truck.

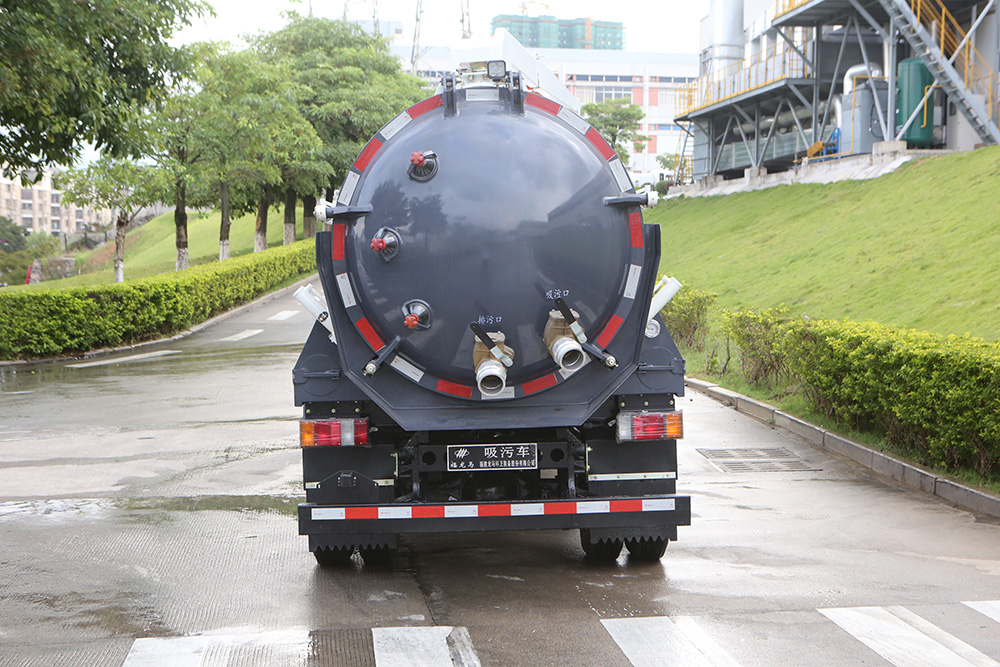

6. The longitudinal beam at the bottom of the tank is designed with a high front and a low back, the front end is 60mm higher than the rear end, the tank body is inclined to the rear, and the dirt is easier to discharge.

latest 7-ton manure suction truck

7. The end of the sewage suction pipe is inserted into the sleeve, which can effectively prevent dripping during transportation and reduce secondary pollution. The sleeve is fixed by a pipe clamp, which is easy to disassemble and clean.
