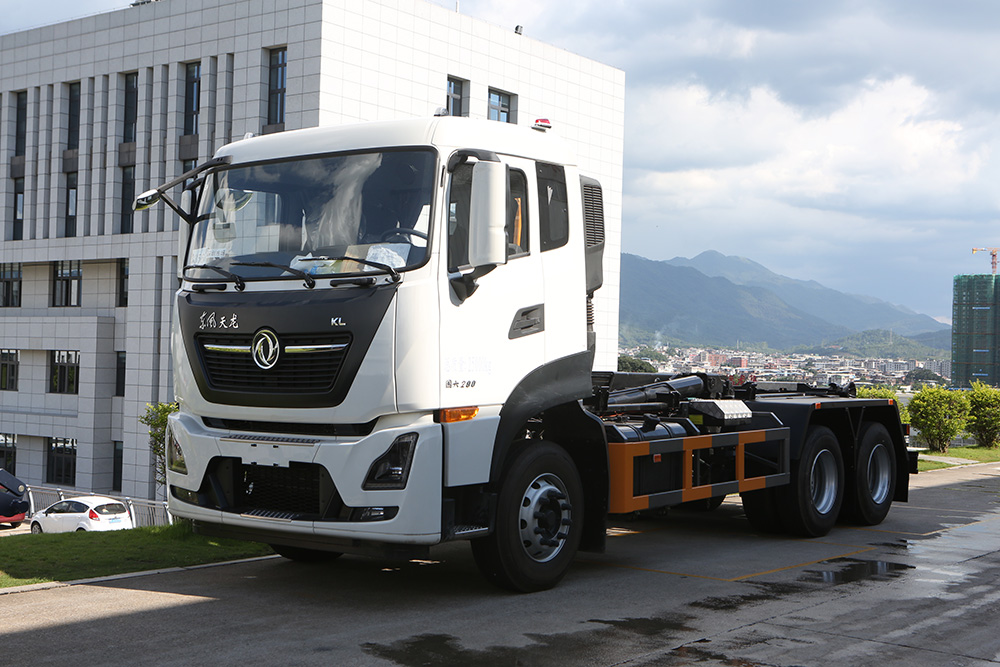

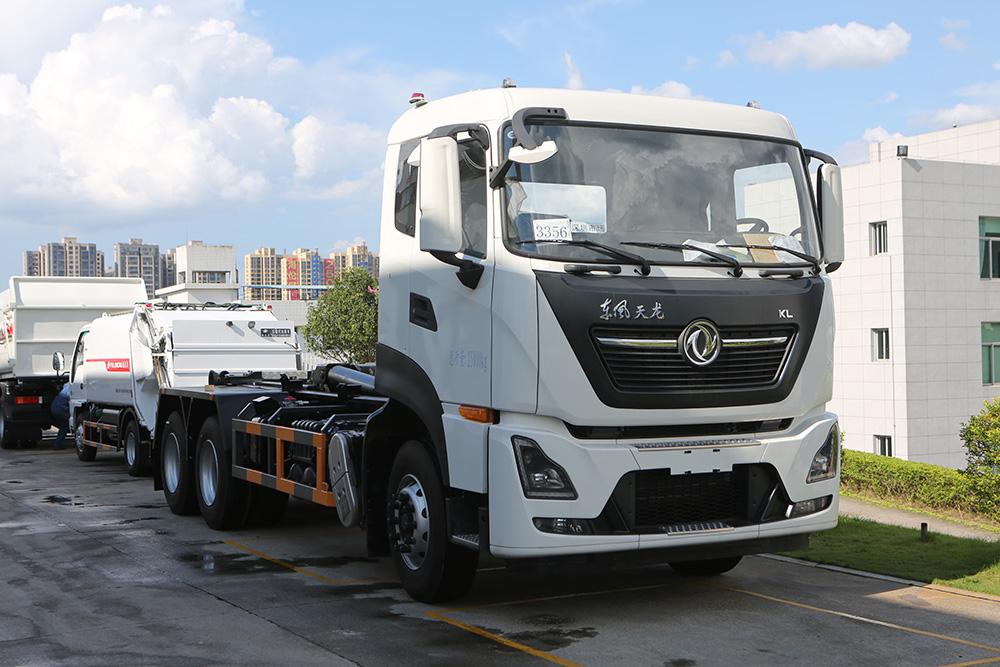

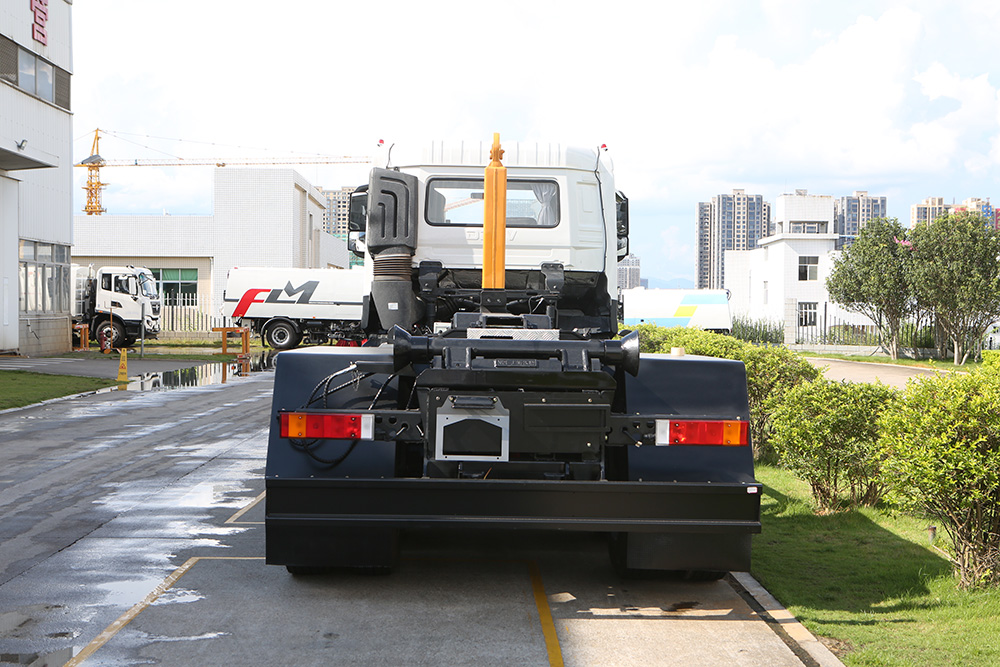

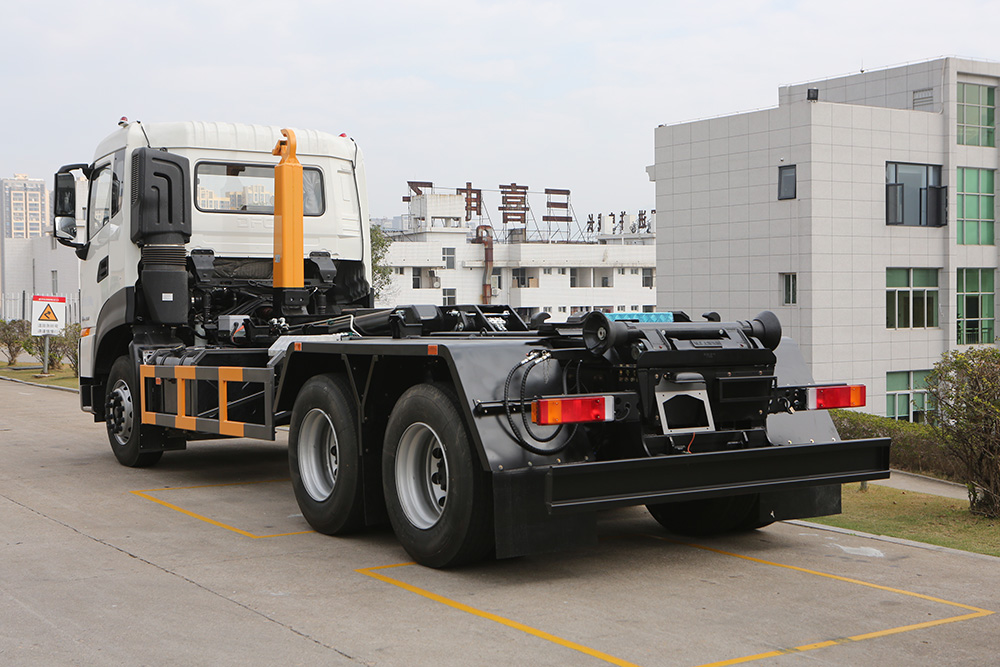

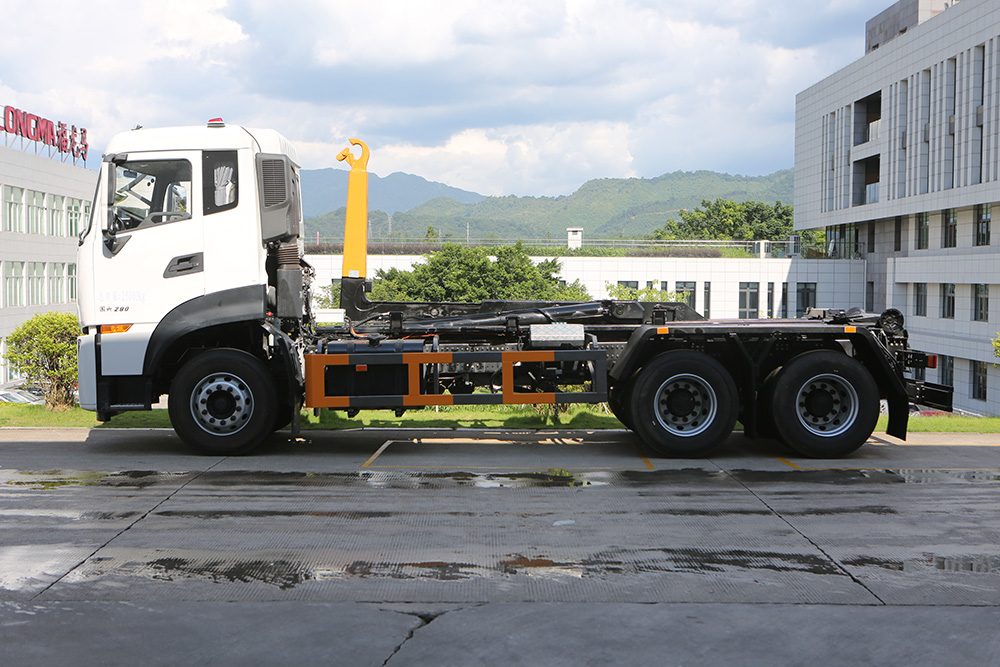

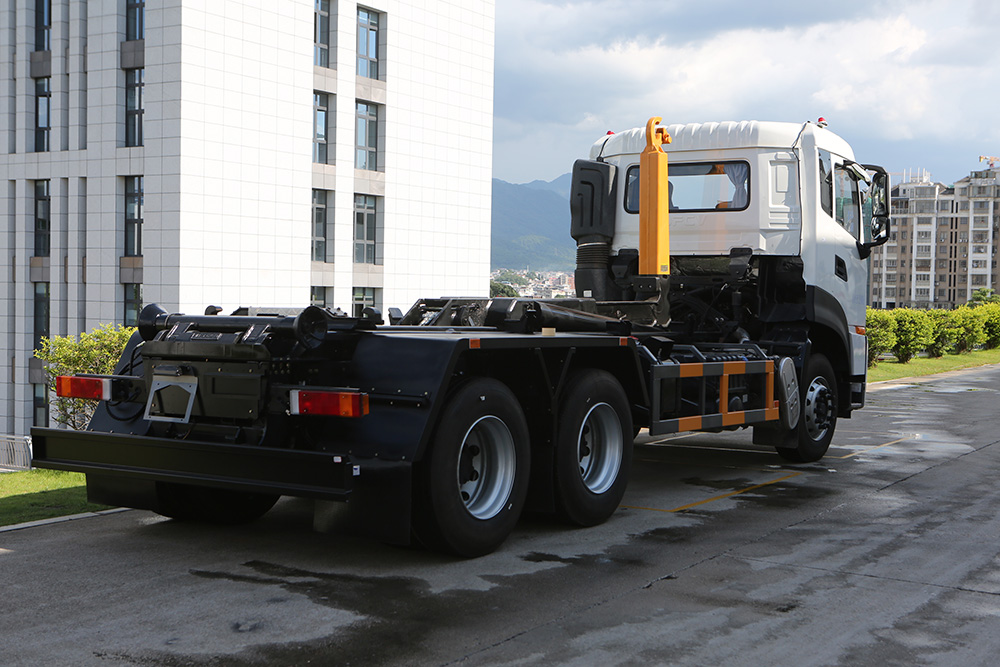

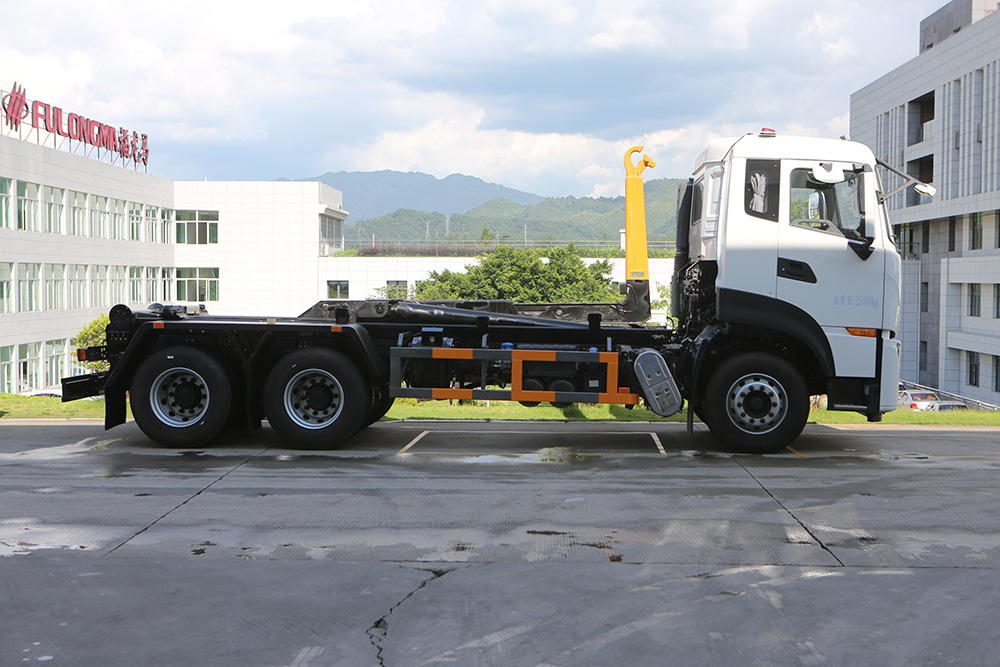

FULONGMA large-scale 25-ton detachable garbage truck is also called a pull-arm garbage truck. It is a retractable hook arm with a high-tech design, which realizes the secondary hoisting of the garbage box, and can be put down from the hoist and dumped by itself. The car has a simple structure, stable and convenient operation, high loading and unloading efficiency, a high degree of mechanization, and labor-saving. One car can carry multiple large compartments, which can effectively avoid secondary pollution during the transportation process of loading and unloading.
01. Components of a detachable garbage truck
It is composed of Dongfeng original chassis, dustbin, power take-off, multi-way reversing valve, pull arm, hydraulic system, operating system, etc.
02. Structural design of detachable garbage truck
An attached frame is arranged on the chassis, a garbage can is placed on the attached frame, and a hoisting device is installed. The main hydraulic cylinder of the pull arm is the main transmission device for hoisting and unloading garbage. Controlling its expansion and contraction can complete the work process of hoisting garbage bins, unloading garbage, and unloading empty garbage bins. One end of the main hydraulic cylinder of the pull arm is connected to the rear end of the attached frame One end is close to the cab, and the other end is connected to the pull arm. There is a support leg at the end of the attached frame, and the support leg is supported on the ground or retracted through the expansion and contraction of the rear support hydraulic cylinder. The chassis is thus not lifted.
03. Hydraulic system of a detachable garbage truck
Composed of an oil tank, oil pump, multi-way reversing valve, hydraulic cylinder, oil filter, and pipeline, the system can realize various special functions of loading and unloading garbage.
04. Detachable garbage truck operating system
Through this system, the conversion of each function can be realized. By manipulating the handle of the multi-way reversing valve, the pulling and unloading work can be completed.
05. Main features of the detachable garbage truck
The garbage collection method is simple, efficient, environmentally friendly (no secondary pollution), reliable in quality, low in failure rate, convenient in maintenance, and low in operating costs. It is widely used in municipal sanitation, factories and mines, residential areas with a lot of garbage, and urban street garbage disposal.
06. Functional advantages of the detachable garbage truck
1. It integrates loading, transportation, and self-unloading, no auxiliary equipment is required, and the operation is convenient and simple.
2. There are multiple boxes in one car, circulating transportation, improving the efficiency of vehicle use, and reducing costs.
3. The safety lock of the box is safe and reliable. When the vehicle is running, the box will not shake.
4. The hook arm system adopts a complete set of equipment, which is safe and reliable, light in weight, and large in loading quality.
5. The hook arm system adopts a sliding arm-hinged structure, which is convenient for hook entry, easy maintenance, and a small height limit for lifting and unloading boxes.
6. All operations can be completed in the cab, the operation is simple and convenient, and the labor intensity of the operator is reduced.
7. The hook arm is made of high-quality steel plate, with high wear resistance and durability; the safety lifting hook is made of high-strength wear-resistant steel, which is firm and reliable.
