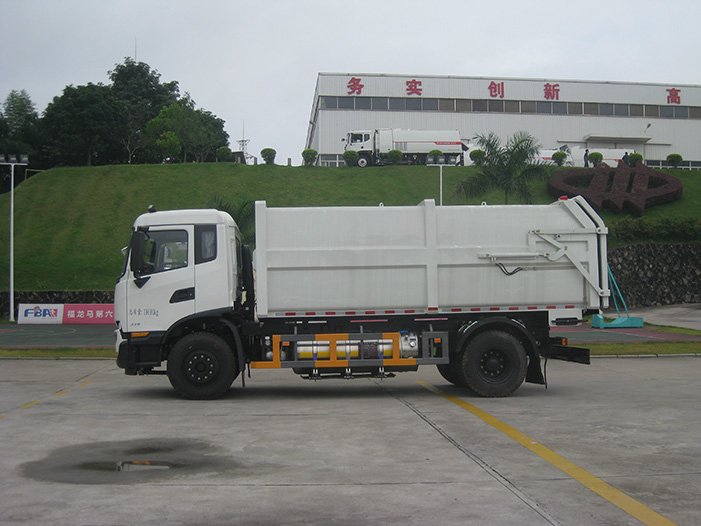

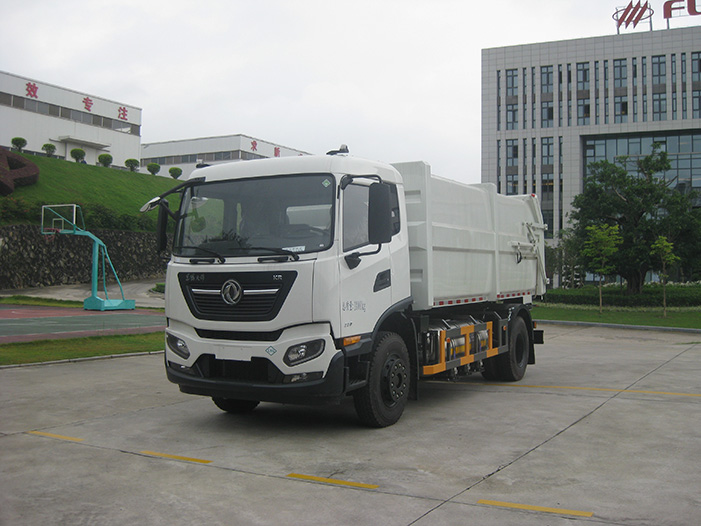

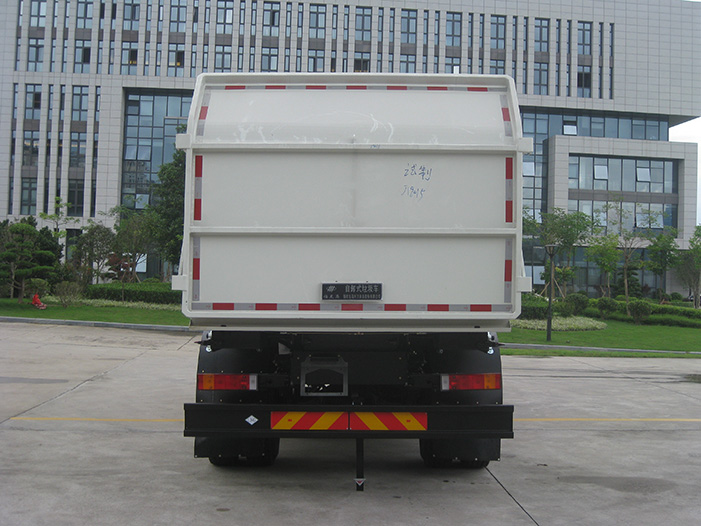

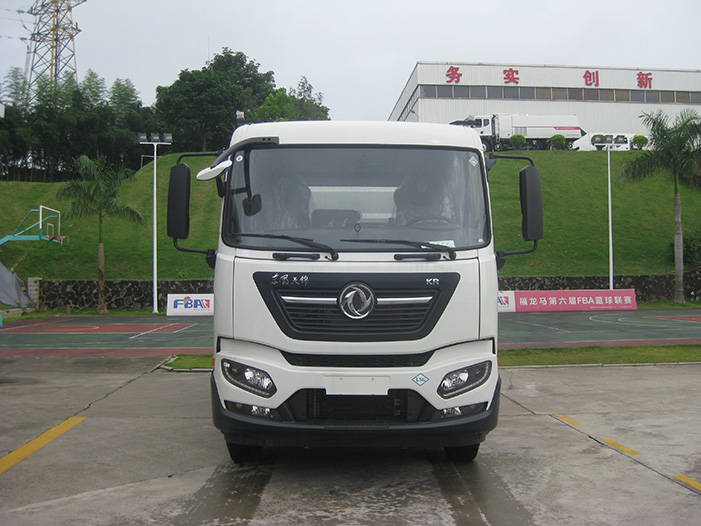

This truck is a special vehicle developed by FULONGMA for the garbage transportation for the garbage compression station. This truck focuses on solving problems such as sewage dripping and container corrosion. The vehicle has advantages of advanced technical performance, beautiful appearance, reliability, and durability, and meets the comprehensive requirements of modern cities for sanitation equipment.
|
Parameters |
FLM5180ZDJDF6NG |
|
Chassis Model |
DFV1182GP6NJ |
|
Emission Standard |
China VI |
|
Chassis Engine Model/Power (kW) |
YCA07220N-60/162 |
|
GVW(Kg) |
18000 |
|
Top Speed {km/h) |
89 |
|
Tailgate Lifting Height(m) |
≤3.5 |
|
Unloading Method |
Tipping |
|
Lifting Angle ( ° ) |
≥45 |
|
Garbage Tank Volume (m3) |
≥17 |
|
Sewage Tank Volume (L) |
≥60 |
|
Hydraulic System Working Pressure (MPa) |
14 |
|
Dimension (LxWxH) (mm) |
7740x2530x3160 |
This truck adopts the high-strength weather-resistant steel plate as the external body material, and the sidewall of the tank body is roll-formed with arc transition.
Contains an adjustable tailgate opening and closing sealing device with a national patent to prevent leakage.
The dual-cylinder dump structure is adopted to improve the stability of the vehicle during dumping.
Two sewage collection tanks are arranged at the rear of the garbage tank body to ensure that no secondary pollution will be caused during garbage transportation.
Equipped with electronic control and manual dual system, adopting multi-position operation control mode: in the cab and the right rear side of the cab, operations such as tank tilting and tailgate opening and closing can be performed, which is convenient and quick.
