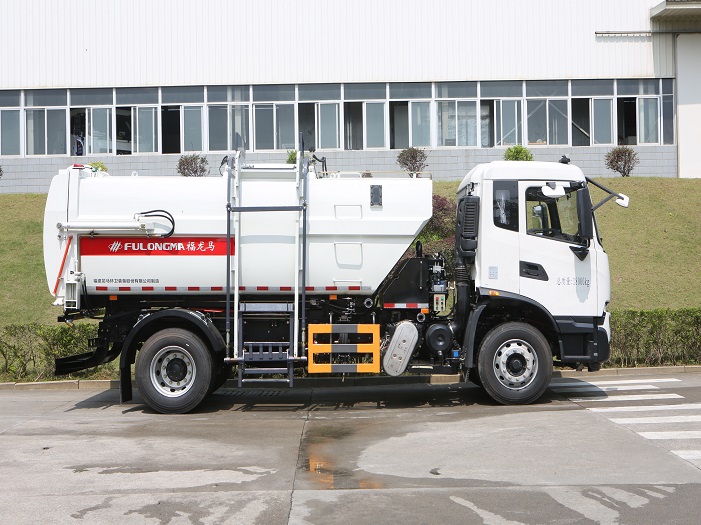

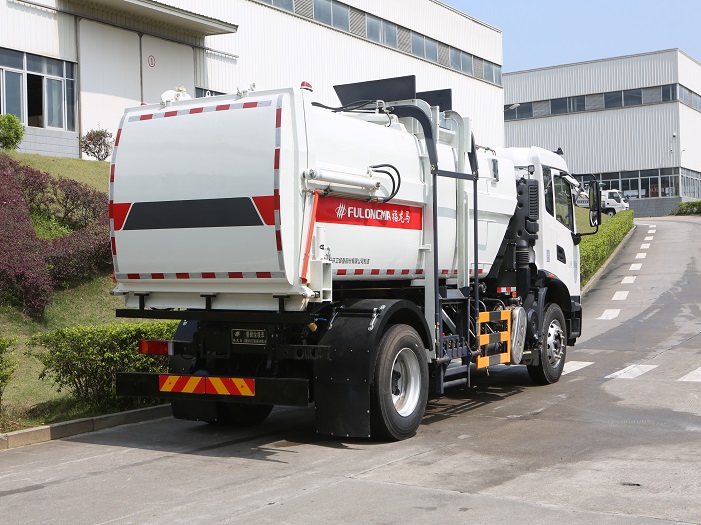

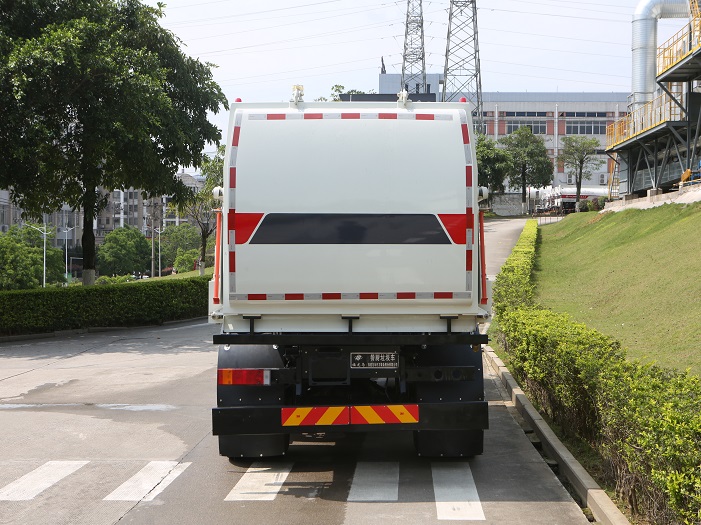

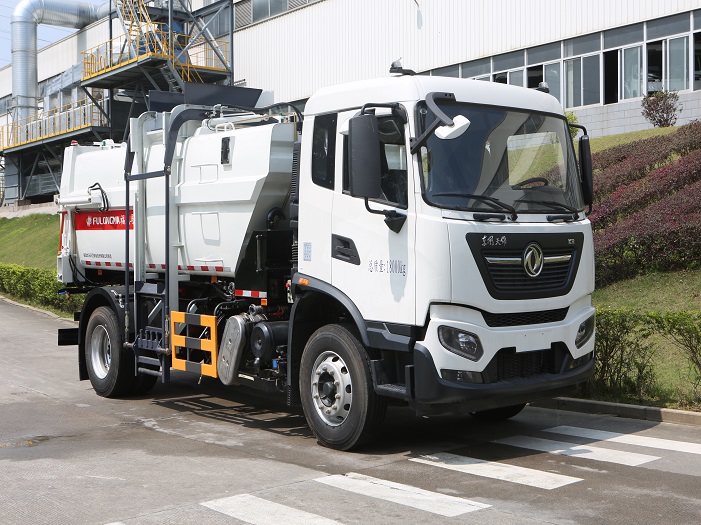

Food Waste Collection Truck – FLM5180TCADF6J

Food Waste Collection Truck is developed independently by our company. It has the advantages of large loading volume, no secondary pollution, reliable and durable. This kitchen garbage truck can ensure that no leakage during transportation. This is truck also can be used to collect other daily garbage.



Main Parameters

Refuse Container Capacity (m³)

13

High Pressure Cleaning Pressure(MPa)

4

Clean water tank volume(m³)

0.5

Back door action cycle time (s)

≤30

Lifting cycle time (s)

≤80

Lifting device working cycle time (s)

≤25

FEATURES

The dustbin box is made of SUS304 stainless steel material to ensure that it is not rusted all year round. The integral frame structure, large curved side arc box, and convexly curved rear door have strong resistance to deformation, long service life and strong loading capacity.

It adopts an integral frame structure, a large curved side arc box, and a convexly curved rear door. It has strong resistance to deformation, long service life, and strong loading capacity.

Adopt the lifting self-unloading method, cancel the push plate structure, increase the effective volume of the garbage bin, the discharge speed is fast, there is less garbage residue after the discharge, it is convenient to clean the inside of the bin, the maintainability is good, and the working efficiency is improved.

The vertical arrangement of the rear door cylinder seat is convenient for installation and maintenance, and the sequence valve is used to realize the opening and closing sequence of the rear door and the latch, which is reliable and reduces the cost.

Use special back door rubber strip and rubber strip groove to prolong the service life of the rubber strip and improve the sealing performance of the rear door.

A special back door anti-drip device is adopted to accept the swill water leaking when the back door is not sealed, the structure is simple, environmental protection and safety.

Equipped with a rear door safety strut device, when the rear door is opened for maintenance, the safety strut is propped up to prevent the rear door from accidentally falling and improve safety.

The right side of the box is equipped with bin lift, which can lift 120 and 240 liters of standard trash cans. The friction force during the ascent is small, and the lifting mechanism does not open during the linear movement. Smooth, safe and reliable; the lifting mechanism and the upper cover form a linkage mechanism through connecting rods and swing arms, which not only saves costs but also improves work efficiency.

The angle adjustment mechanism of the upper end of the guide rail and the adjustable connecting rod can be used to adjust the tilting angle of the trash can and the height of the tooth plate from the ground to avoid the problem that the trash cannot be dumped clean due to the insufficient tilt angle of the trash can Strong, reduce production requirements.

The special anti-drip device of the lifting mechanism can effectively avoid the problem of sewage leakage during the lifting process, reduce secondary pollution, and protect the environment.

Equipped with feeding buffer device, the time for turning the barrel can be adjusted, feeding is stable, avoid splashing, and improve safety and environmental protection.

Equipped with night working lights, it is convenient to work at night and expand the working time range.

The vehicle-mounted hydraulic drive cleaning device can clean the vehicle, site and surrounding environment, with compact structure and good maintainability.

Equipped with a liquid level observation window in the box, which is convenient for observing the loading status of the garbage in the box and controlling the fullness of the garbage box.

Optional rear view equipment with waterproof night vision and other functions.

Optional weighing system with functions of weighing, printing, uploading, displaying, locating, video monitoring, and trash card reading identification, mainly composed of four major parts, namely intelligent weighing equipment, receiving display instrument, intelligent terminal and Other car accessories and other components.

The back door sewage discharge device can be optionally installed, and the user can separately discharge the sewage in the tank through this device to achieve garbage classification treatment.
