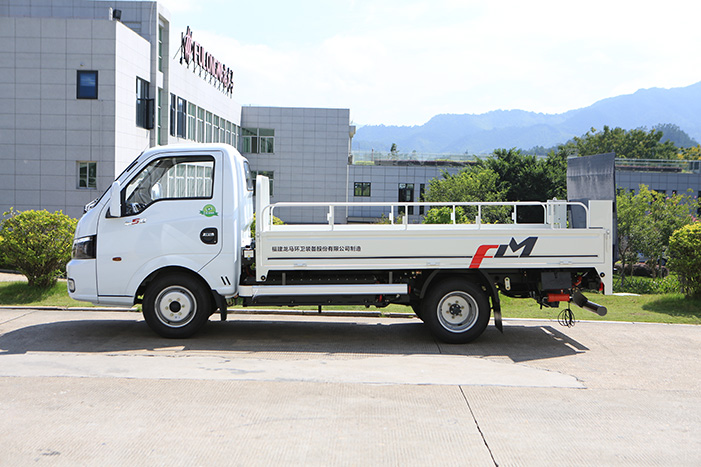

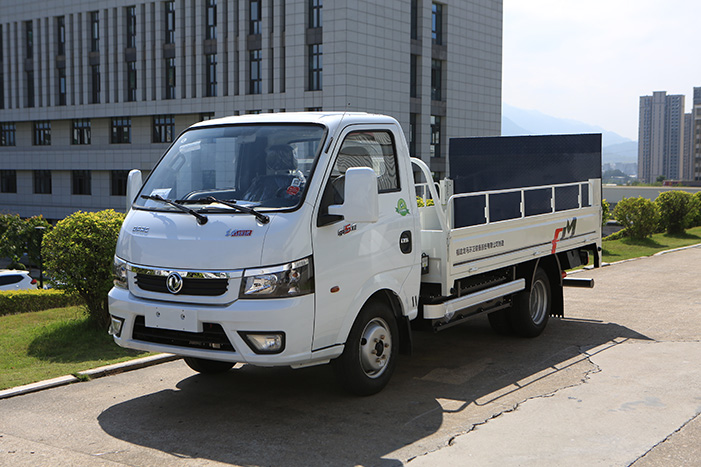

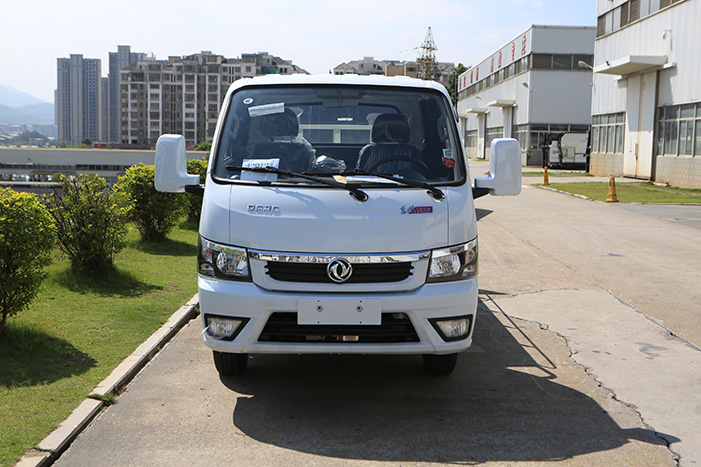

The rear of the truck is equipped with a tailboard lifting system, which is suitable for the collection and transportation of dustbins in residential streets, garbage transfer stations, and other places.
The rear of the truck is equipped with a tailboard lifting system, which is suitable for the collection and transportation of dustbins in residential streets, garbage transfer stations, and other places.
|
Main Parameters |
FLM5040CTYDGBEV |
|
Chassis Model |
EQ1040TACEV1 |
|
Chassis Motor Model/Power |
TZ260XSDE4/80 |
|
Chassis Motor Rotating Speed/Torque (r/min/N·m) |
5000/550 |
|
Chassis Battery Rated Voltage/Capacitance (V/Ah) |
379.6/129 |
|
Chassis Battery Capacity (kWh) |
48.97 |
|
Chassis Battery Energy Density (Wh/kg) |
≥140 |
|
Chassis Battery Model/Manufacturer |
EV-M-104129-DF09 (Ternary Lithium Ion Battery)/Henan Lithium Power |
|
Travel Range (km) |
220 |
|
Wheelbase (mm) |
2800 |
|
Top Speed (km/h) |
90 |
|
Tailgate Tipping Angle (0) |
90 |
|
Cycle Time of Loading and Unloading (s) |
≤30 |
|
Tailgate Maximum Lifting Capacity (kg) |
≥300 |
|
Hydraulic System Pressure (MPa) |
14 |
|
External Size (L*W*H)(mm) |
5510x1840x1950 |

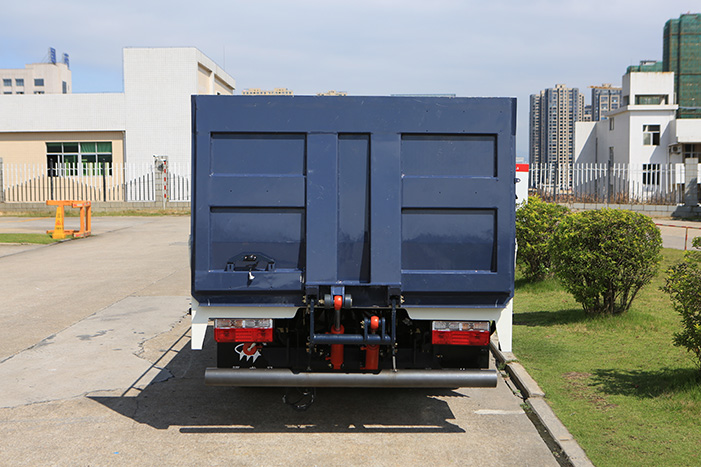

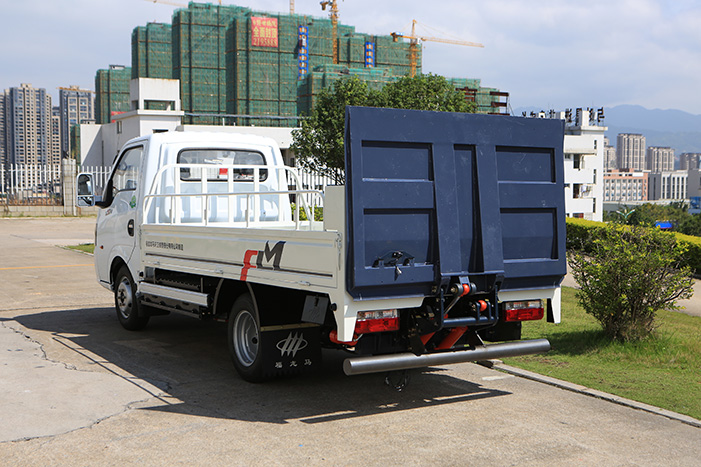

The truck uses an electronically controlled hydraulic tail lifter, which can load and unload two dustbins at one time. It can reduce labor intensity and improve work efficiency.
The truck is flexible in shipment and has a large transportation range, greatly expanding the barreled garbage collection area.
The dustbins can be transported as a whole, and there will be no problems with sewage dripping and garbage spilling.
Without additional protection, the truck can be parked on a flat road for loading and unloading operations.
Equipped with fixed and wired operation modes, the operation is simple and convenient.
The truck is equipped with multiple measures for safety protection. For example, the power supply of the tail plate is equipped with an independent switch, and the lifting tail plate is equipped with a reflective warning plate and a safety chain.
The standard side-turning railing carriage is convenient for transferring empty dustbins and other handling methods, which can improve efficiency.
An optional dustbin positioning rod can be installed on the carriage, which can position the dustbins in the carriage to prevent them from sliding while driving.
The tail plate can be optionally equipped with a lifting tail plate descending speed control system, which can flexibly adjust the descending speed of the tail plate and improve work efficiency.
