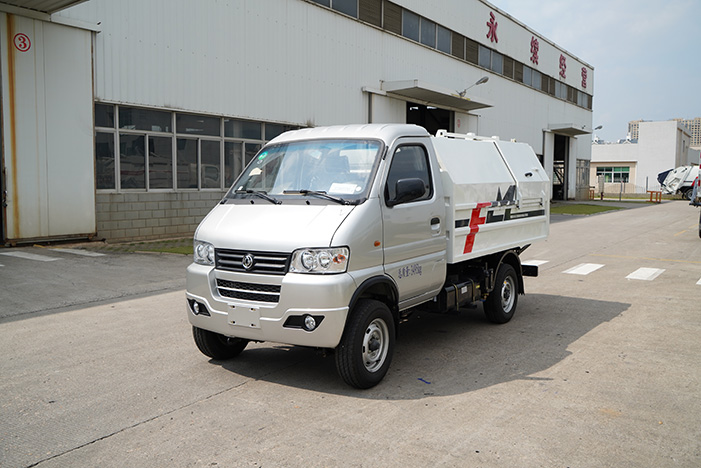

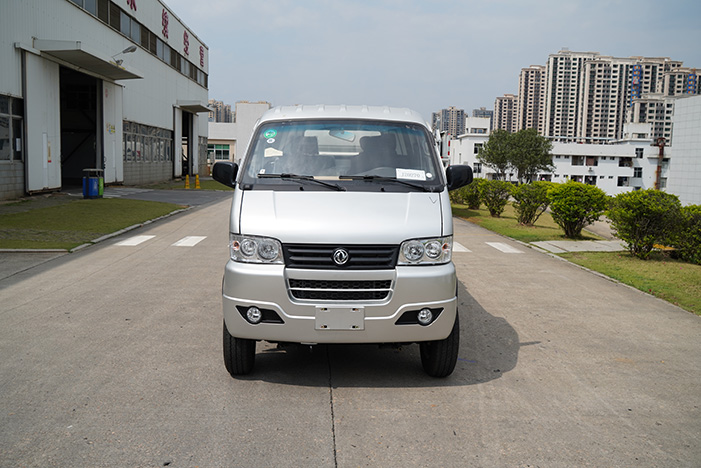

The truck is a garbage truck developed for work sites with various types of garbage collection or low height. It can be widely used in the collection and transfer of bulk, bagged, barreled and other garbage in cities, towns, streets, residential areas, and underground parking lots.
|
Parameters |
FLM5030ZZZDG6D |
|
Chassis Model |
EQ1035SJ16QC |
|
Emission Standard |
China VI |
|
Engine Model/Power (kW) |
LJ4A15Q6/83 |
|
GVW(kg) |
3495 |
|
Top Speed (km/h) |
100 |
|
Garbage Tank Volume (m) |
≥3.5 |
|
Dumping Angle ( ° ) |
≥45 |
|
Dimension (LxWxH) (mm) |
4535x1665x2050 |

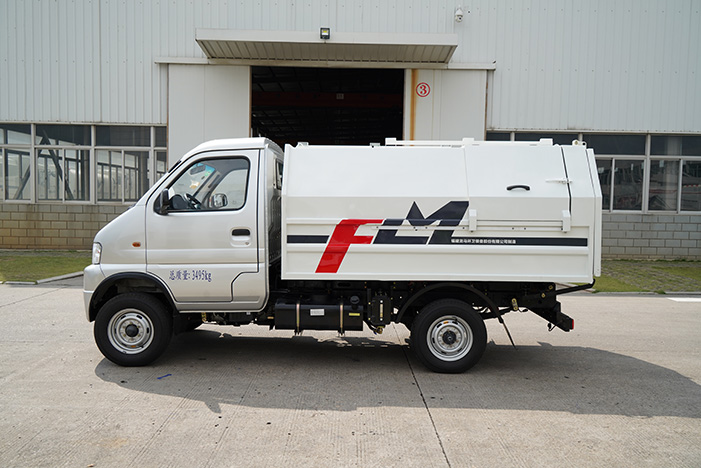

The tank body is made of Q345 high-strength steel plate. It can be made of stainless steel to ensure that it is not rusty and has a long service life.
The right side of the tank is equipped with a bin lifting mechanism, which can lift 120, 240 liters of standard dustbins. The device has a simple and compact structure, fast working speed, and high working efficiency. Both the left and right sides are designed with feeding ports, and the sliding gate slides back and forth to control its opening and closing. The feeding port has a large space, which is convenient to put in bags, non-standard plastic buckets, and other bulk garbage.
The tank body is equipped with an ejector for garbage compression.

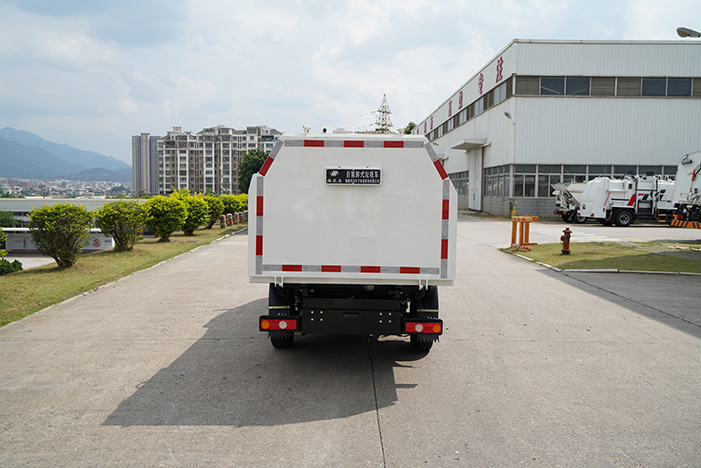

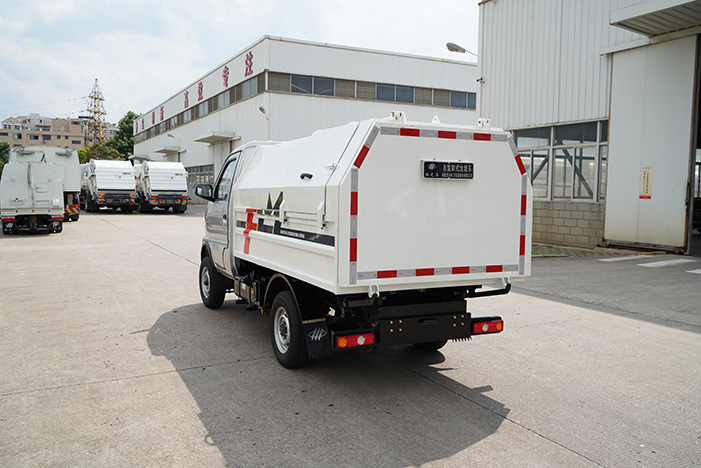

The tank adopts the tipping method for unloading. The lifting cylinder adopts a double-root arrangement, the lifting operation moves smoothly and the lifting force is large.
A new type of locking mechanism (no cylinder action required, unloading automatically opens) to reliably seal the garbage take body and the tailgate rubber strip, ensuring that all kinds of domestic garbage are collected and transported in a closed state without sewage leakage.
The sewage collection tank is equipped as standard, which can divert and collect, and discharge the sewage from the garbage, and the operation process is environmentally friendly and pollution-free.
Optimized design of the operating system, using hydraulic multi-way valve control, durable and reliable, simple and convenient operation.
