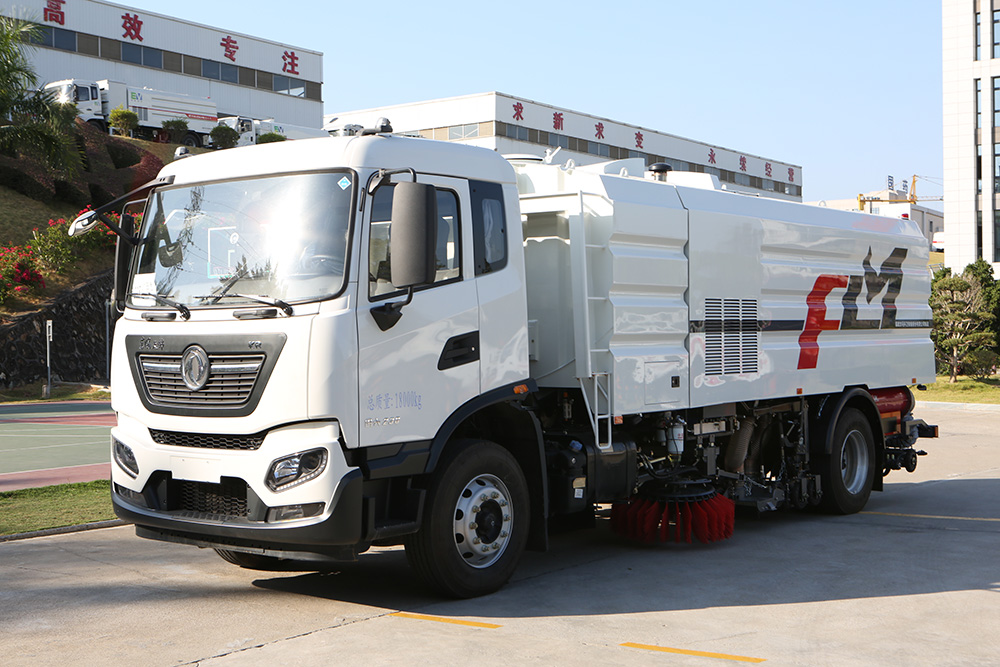

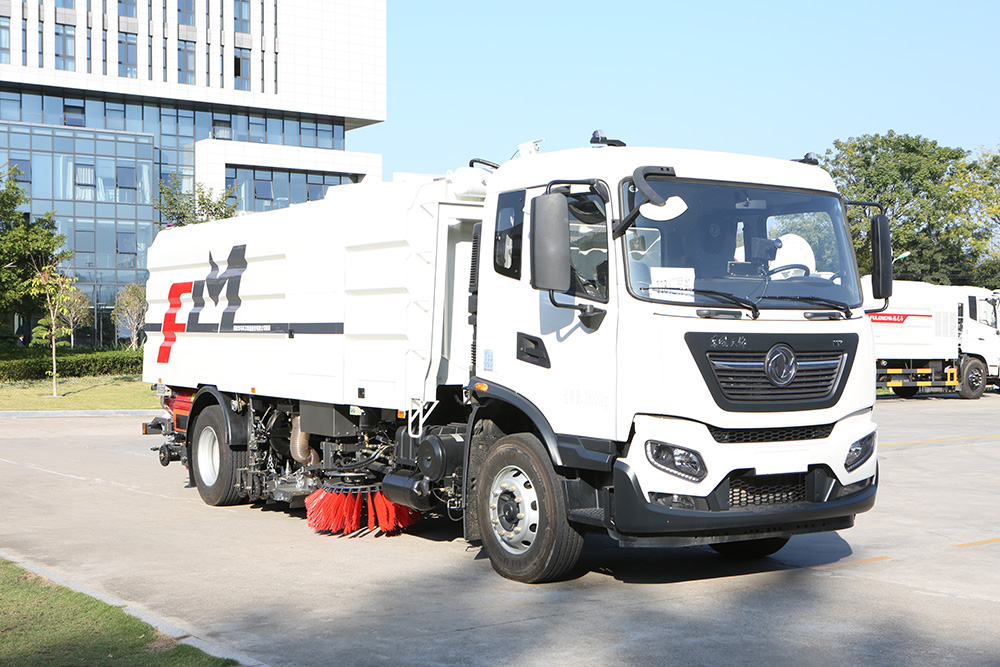

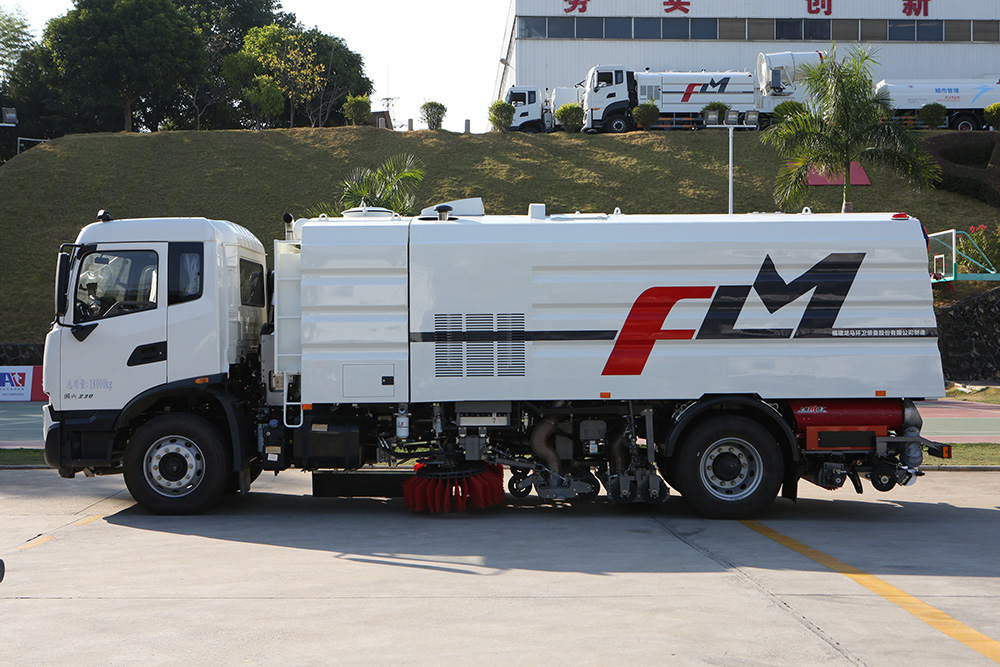

FULONGMA all-weather sweeper is a new generation of all-weather sweepers based on the advantages of its peers and combined with the existing research and development experience of sweepers. Adopt Dongfeng Class II chassis remodeling, add auxiliary engine, fan, high-pressure water pump, clean water tank, garbage can left and right cleaning mechanism, wide suction nozzle with a long spray bar in the middle, sweeping dust suppression system, hydraulic system, special device The electronic control system and subframe are modified.
01. Overview of all-weather car washing and sweeping functions
1. Adopt the arrangement of “two-disc sweep in the middle + suction on both sides in the middle + wide suction nozzles with double suction in the middle”, the working device is centralized, the distance between the nozzles from the ground is constant, the actions of brushing-rinsing-absorbing sewage are continuous and smooth, and the operation splashes It has the characteristics of less sewage, high sewage absorption rate and high cleaning efficiency.
2. Adopt internationally famous brand high-pressure water pump, nozzle, and imported key hydraulic and electrical components, with excellent performance and reliable work.
3. It has various operation functions such as road cleaning, sweeping, cleaning, roadside, curbstone facade cleaning, as well as full sweep, left sweep, right sweep, full sweep, left sweep, right sweep, full sweep, left washing, right washing, pure suction, winter drainage, a total of 11 operating modes, front corner spray, rear spray, the high-pressure spray gun can clean road signs, billboards, etc.
02. Scope of application for all-weather car washing and sweeping
It is suitable for highways, squares, airports, docks, tunnels, bridges, partition walls, curbs, and curbstone facades, especially for mechanized cleaning, sweeping, spray dust reduction and other cleaning operations in large city squares.
03. The main structure and performance characteristics of the all-weather sweeper
1. Chassis
Chassis: It adopts the BJ1186VKPHK-1K National VI Type II chassis of Beiqi Foton Motor Co., Ltd., with reliable quality and stable performance. The chassis meets the National VI emission standard.
Engine: The F4.5NS6B220 diesel engine produced by Beijing Foton Cummins Engine Co., Ltd. is adopted. The rated power of the engine is 162kW, the displacement is 4.5L, and the maximum torque/speed is 820N.m/2300rpm.
2. Auxiliary engine and its transmission
Auxiliary engine: Dongfeng Cummins engine, rated power 119kW/2200r/min. The matching vehicle clutch protects the start and stops of the auxiliary engine and the high-pressure water pump, and automatically controls the disengagement and separation of the fan and the high-pressure water pump through the program.

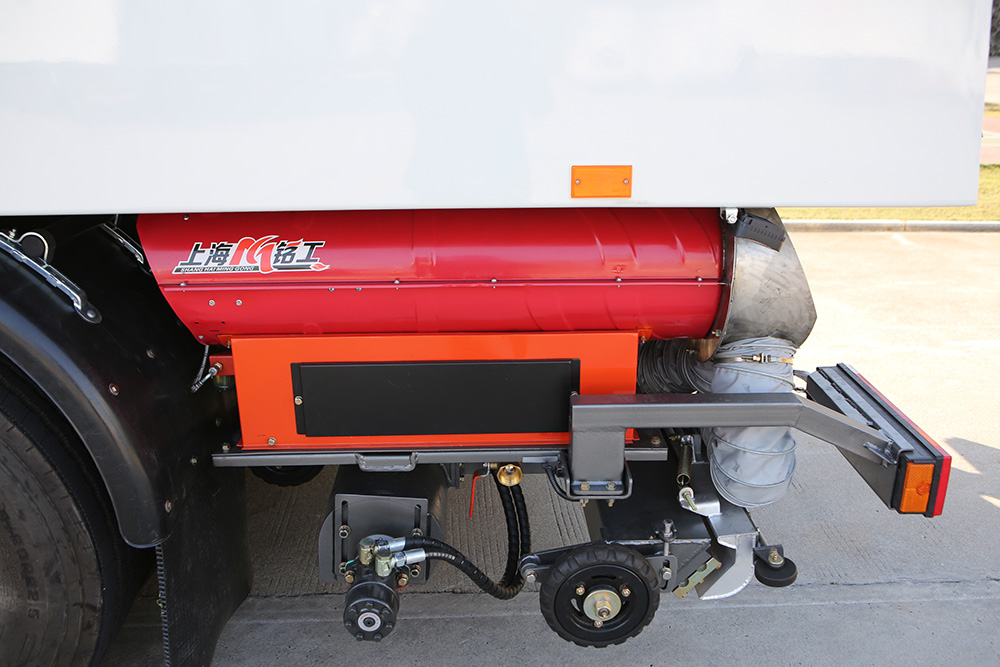

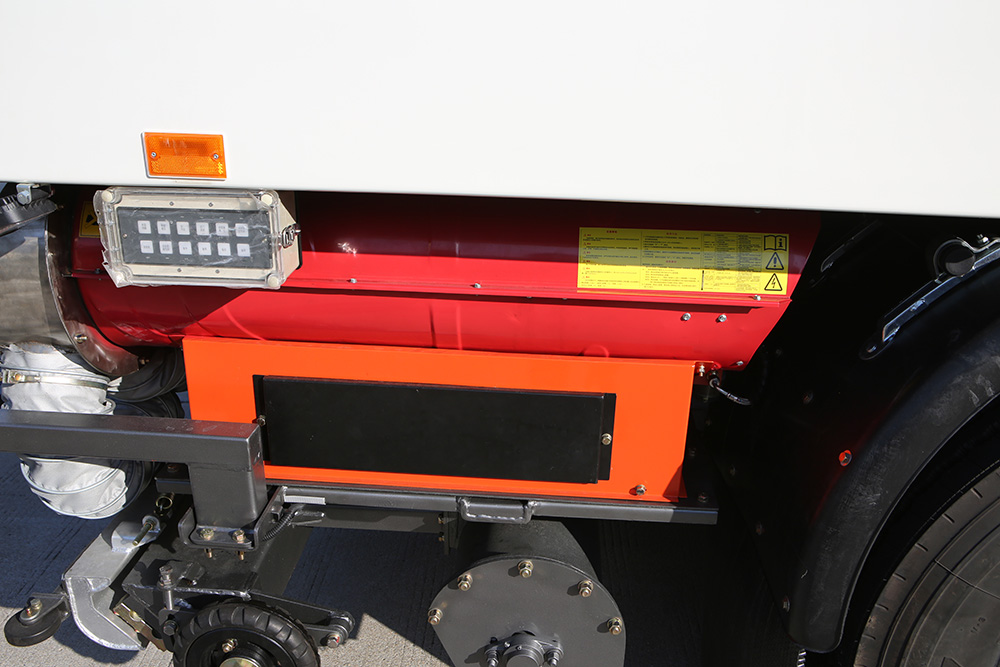

3. Fan
The high-efficiency centrifugal fan specially designed by FULONGMA for washing and sweeping vehicles is used, which has the characteristics of high efficiency, low noise, flat wear resistance curve, wide high-efficiency area, reliable operation, and long service life.
4. Nozzle
The central double suction mouth integral ultra-wide suction nozzle is adopted, the suction width is up to 2450mm, the cleanliness is high, and the effect is good; its built-in long-row spray rod is equipped with a quick-release and quick-change mechanism for easy maintenance, and its water flow has a large impact force and can directly The sewage is sent to the suction port, and the suction rate of sewage is high. Especially, the long-row spray bar is equipped with a reversible sealing cover, which can effectively prevent the splash of water and sewage, and is environmentally friendly, reliable, and worry-free in performance. And according to the road surface pollution, adjust the long row of nozzles to the road surface flushing angle, so that the cleaning effect is better.
5. Left and right spray boom
Combined high-pressure cleaning boom. The high-pressure cleaning spray bar is composed of left and right spray bars and the spray bar inside the suction nozzle. It is attached to the suction nozzle or in the suction nozzle. The height of the spray bar from the ground is fixed during operation, and it does not change with the load of the whole vehicle. It can achieve and stabilize Optimum cleaning results. The left and right spray rods can be swung out and retracted, and this action is automatically controlled by the electronic control system. When the left and right spray bars are swung out at the same time, the cleaning width is not less than 4.1m. In order to facilitate the adjustment, maintenance, and replacement of the nozzle, the spray rod in the nozzle is designed to be pulled out quickly.

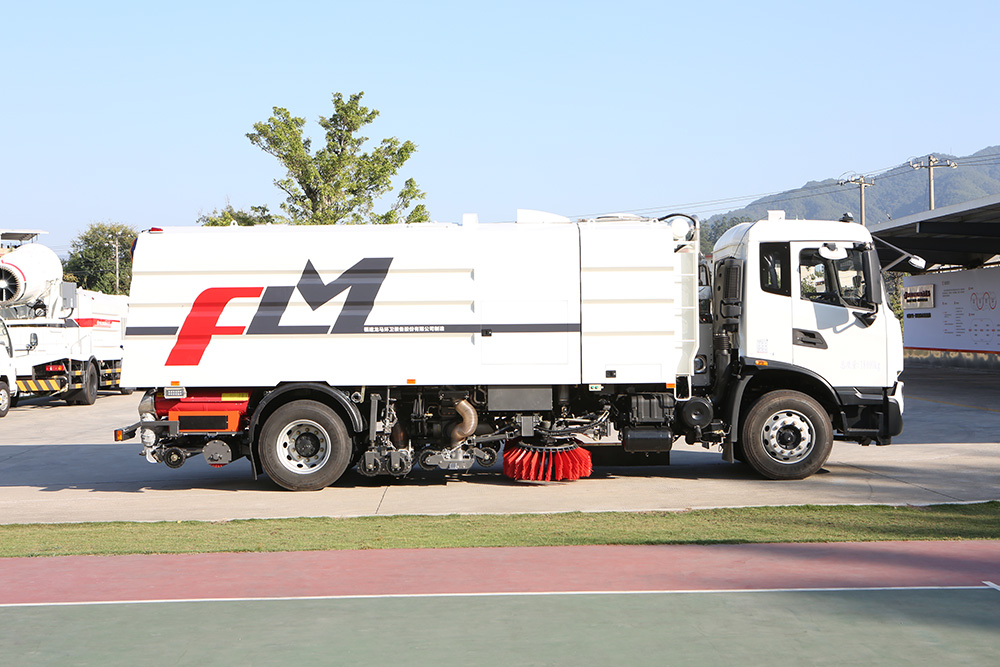

6. Cleaning mechanism
The left and right vertical sweeping discs use a single oil cylinder to control the lifting and swinging, with good anti-collision performance, low cost of use, and reliable work. It has various functions such as road sweeping, road scrubbing, high-pressure cleaning, curb scrubbing, garbage collection, sewage recycling, spraying and road separation wall cleaning.

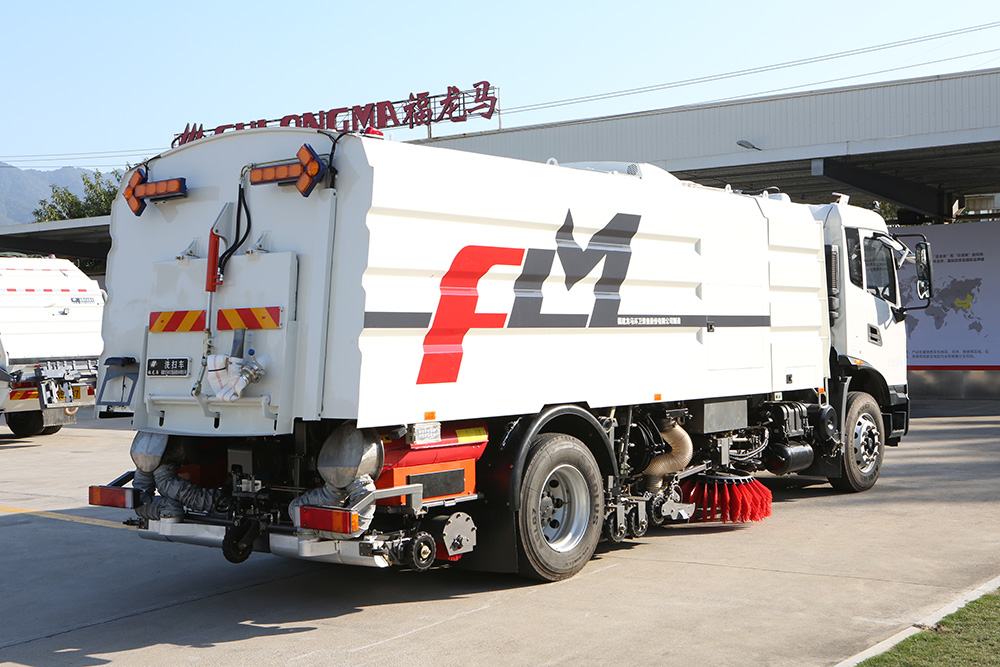

7. Trash can
It adopts stainless steel tile structure design, which integrates part of the clean water tank and garbage can. The waste bin is tipped and unloaded, and the unloading angle reaches 48 degrees.
8. High-pressure water pump
The original imported high-pressure water pump for washing and sweeping cars is adopted, with rated pressure of 10 MPa, strong working performance, safety and reliability, and long service life.

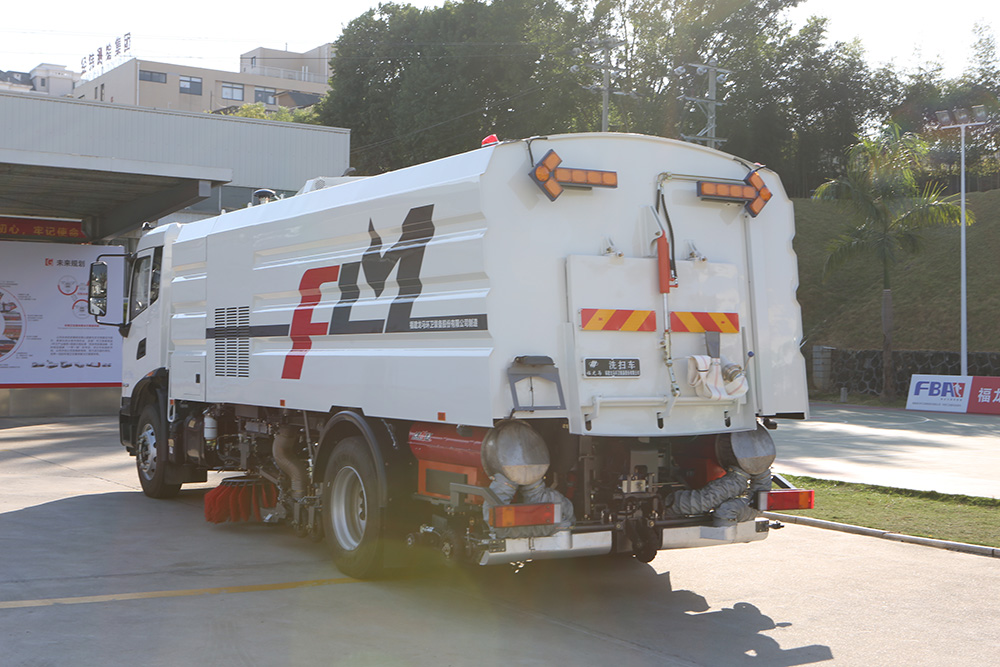

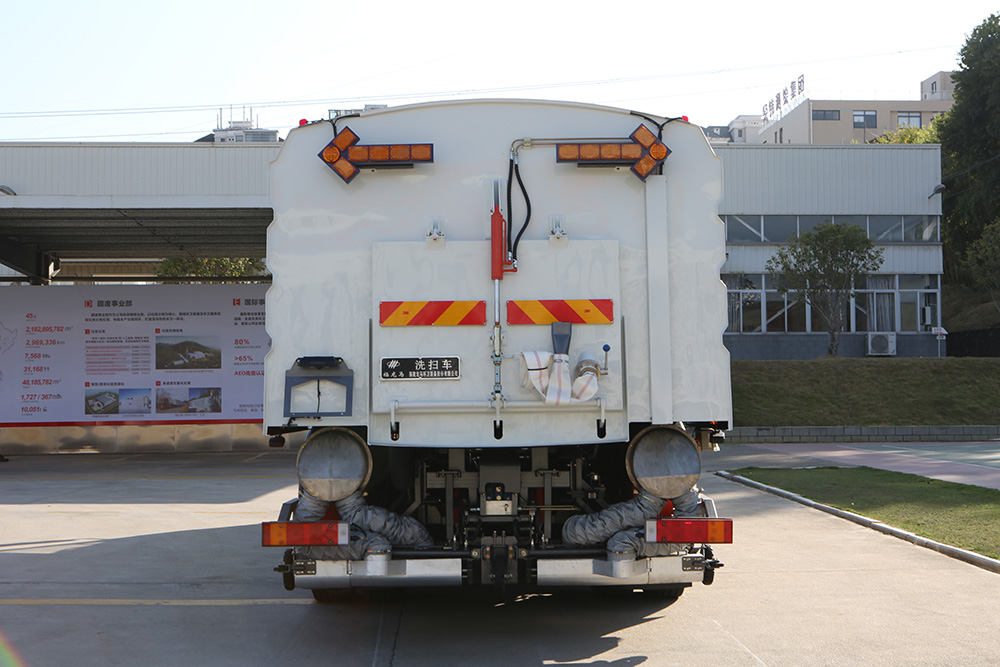

9. High-pressure spray device
There is a lower high-pressure spray system at the rear of the garbage can, which can be used as a road spray for dust suppression and road cooling in summer.
10. High-pressure hand-held spray gun
The hand-held spray gun in this model is equipped with a quick connector, which can be easily connected or disconnected from the flushing reel. Using the hand-held spray gun, the cleaning efficiency is high, the effect is good, and the operation is more convenient and safer.

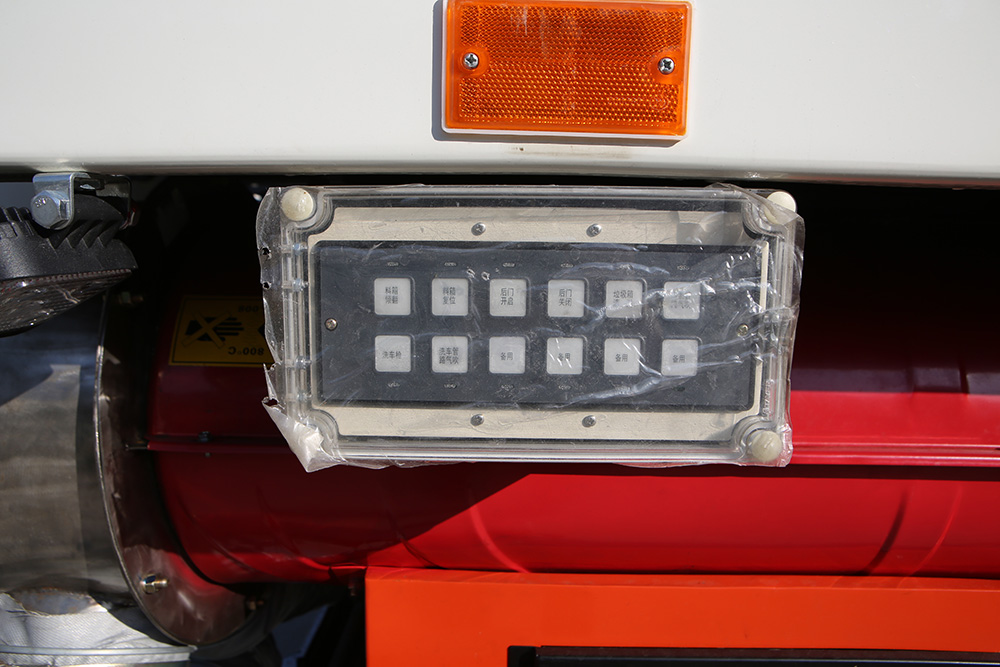

11. Working Mode
There are various operating modes to choose from. The system has set up 11 operating modes: full sweep, left sweep, right sweep, full sweep, left sweep, right sweep, full sweep, left sweep, right sweep, pure suction, and winter drainage. The user can choose the appropriate operation mode to carry out the operation according to the operation’s needs. After the operation mode is selected, start the operation with one key, and all the mechanisms that need to participate in the operation will automatically extend and operate in the specified order. When it is necessary to stop the operation, one-key stop, all the working mechanisms in the work will automatically stop running in the specified order and return to the original state.
12. Various automatic protection devices
The washing and sweeping car is equipped with automatic protection devices such as the lack of water in the clean water tank and the full of water in the garbage can protect the washing and sweeping car from being damaged in specific working conditions such as lack of water and full of water or misoperation.
13. Voice alarm system
The voice alarm system equipped with this vehicle can send out a variety of voice alarms and prompt messages during operation and unloading. There are multiple music prompt messages and roaring alarm messages.
14. 360-degree panoramic image

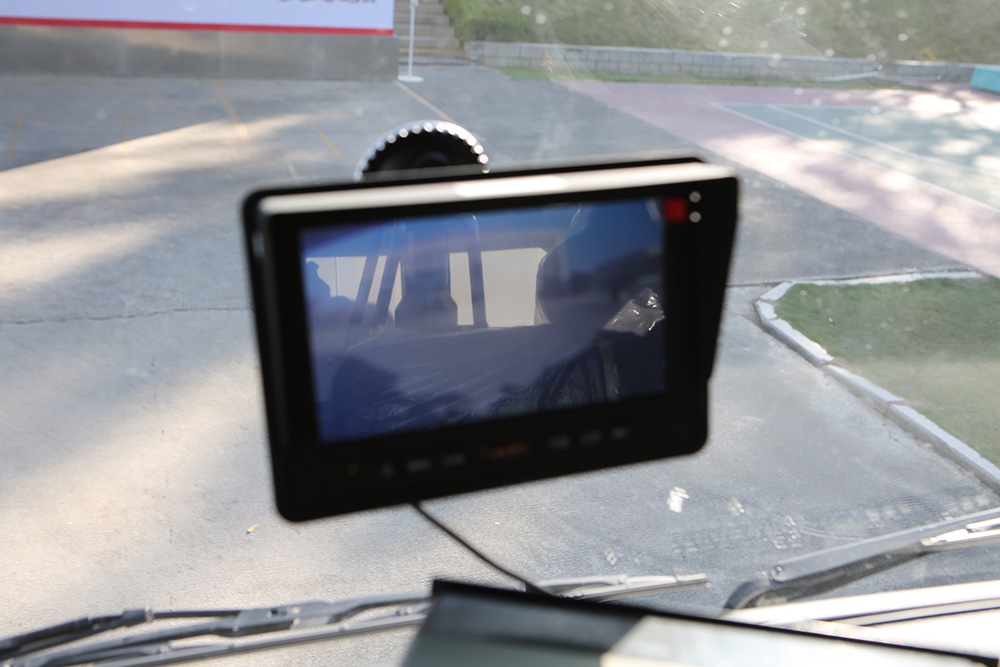

The left, right, front, and rear of the cleaning vehicle are equipped with panoramic cameras, and a color display screen is installed in the cab to display 360-degree panoramic images of the whole vehicle and has a driving record function. When driving, you can check and monitor the cleaning effect in the cab. When reversing, the screen automatically switches to prevent rear-end collision.
