FULONGMA’s latest self-loading garbage truck has advanced performance, good sealing, no hydraulic oil leakage, long working life, reliable performance, and good stability. Especially because the product is in the case of poor road conditions at the dumping site, because the oil cylinder will not protrude from the lower part of the car chassis beam, its passing performance is better than that of the direct-push oil cylinder.

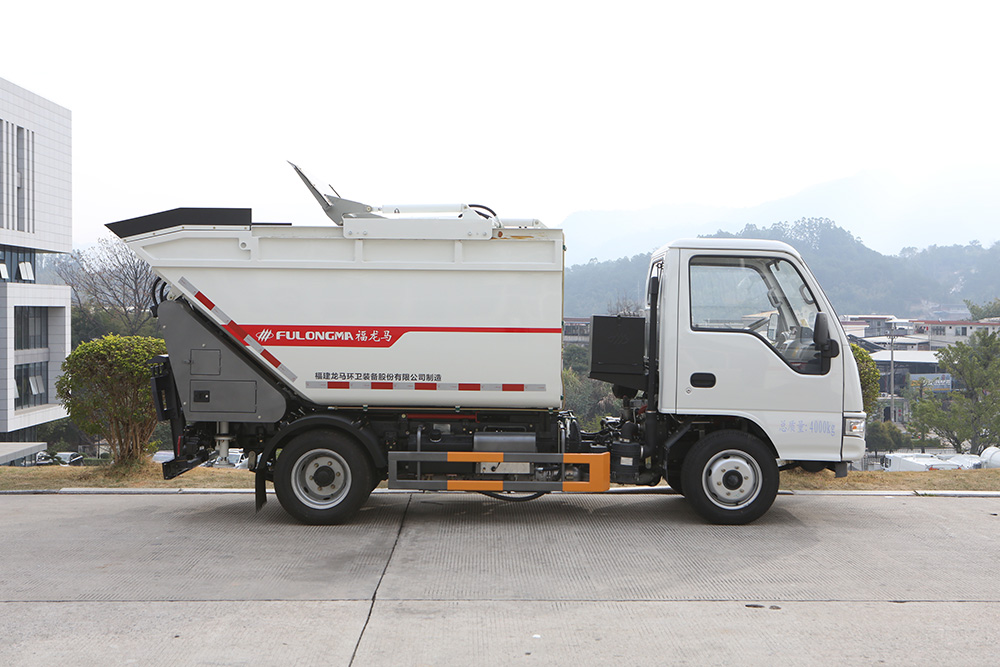

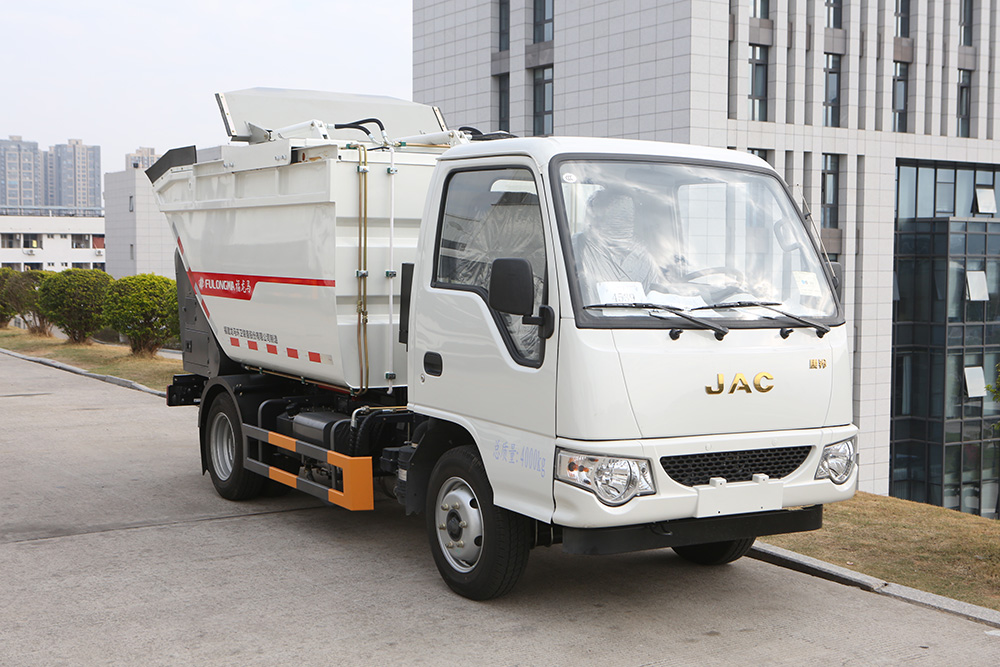

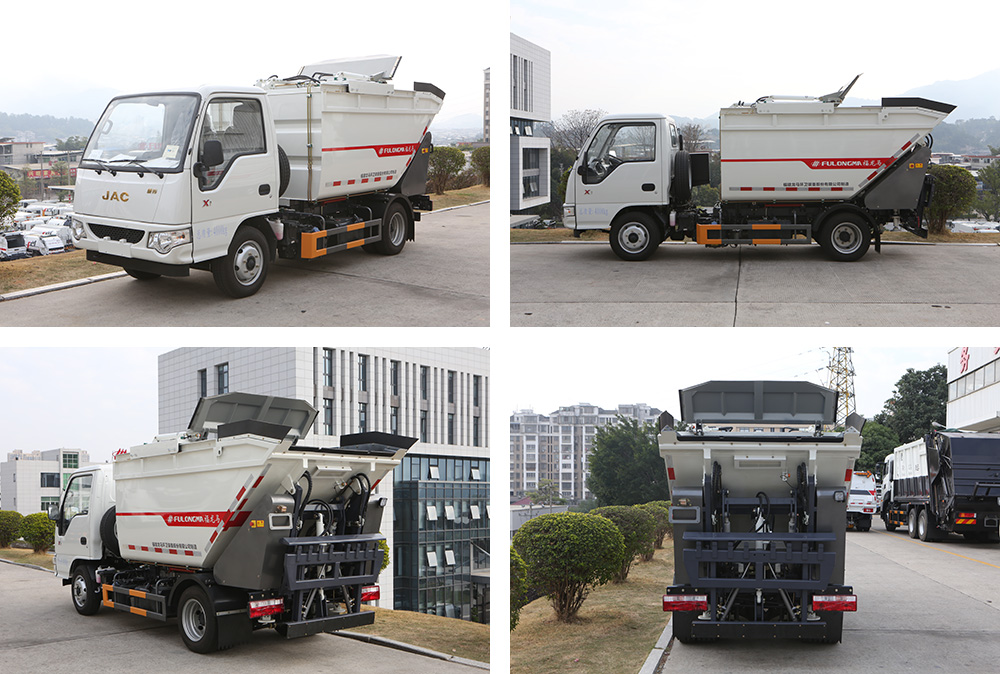

01. Self-loading garbage truck details

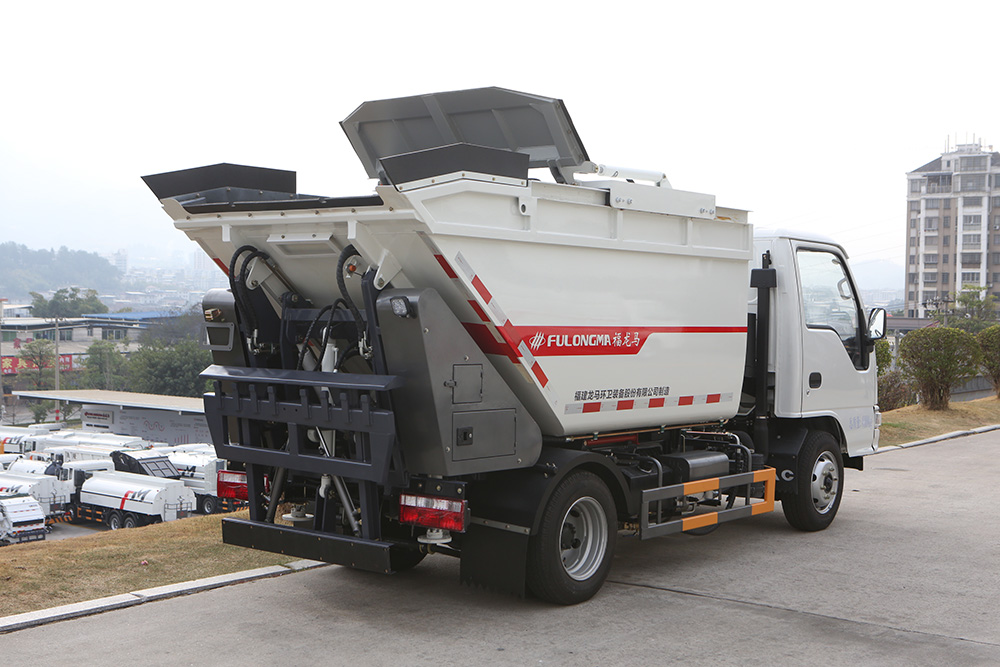

02. Self-loading garbage truck top loading
The cabinet adopts three sides, three bottoms, and four Q345 manganese plates. The arc-shaped pressure-resistant cabinet has a full push device. The rear door is hydraulically locked. The overall sealing effect is good. The tail is equipped with a sewage tank and the side has a sewage outlet. The effective volume is 6 cubic meters. Zhongmei multi-way valve, Hefei Changyuan hydraulic pump, with Siemens PLC control system, can be operated indoors and outdoors.
03. Self-loading garbage truck configuration
1. Box lifting and self-unloading
The box body of the docking garbage truck can be directly dumped by the hydraulic cylinder to lift the garbage, which improves the work efficiency.
2. One-key operation
Optional PLC one-key operation in the cab can realize the operation without getting off the car, which greatly improves the work efficiency and reduces the labor intensity of the workers.
3. Docking operation
The back cover of the docking garbage truck box is opened by hydraulic pressure, directly docking with the compression garbage station, and pushing the compressed garbage into the box for transportation, which is simple and convenient.
4. Hydraulic cylinder
Using domestic well-known brand oil cylinders or optionally imported oil cylinders, stable performance, and reliable quality.

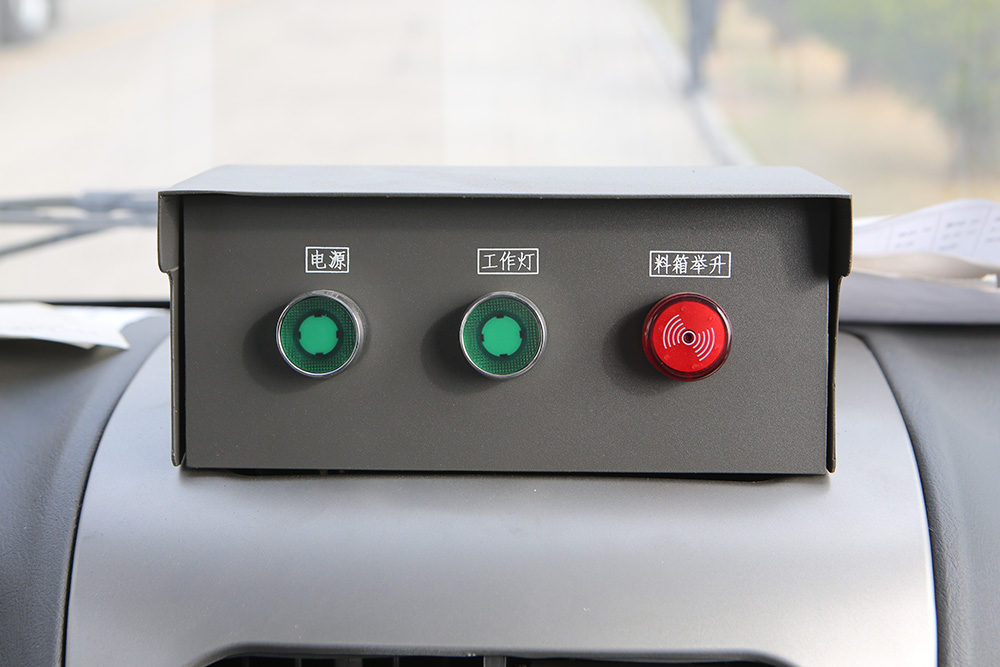

5. Console
The brand multi-way valve group is adopted, and the outer console is installed in the cab, which can control the opening of the rear cover and the lifting of the tank, which greatly improves the work efficiency.

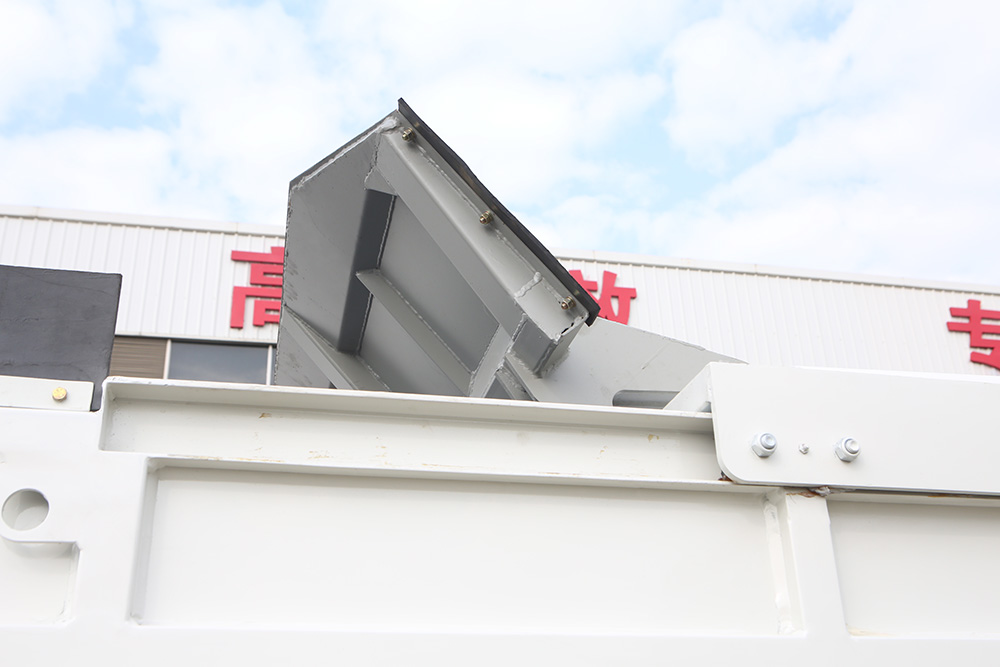

6. Open the upper cover
The upper cover of the box body can be equipped with two-side unfolding garbage to be more convenient and quick to load according to customer requirements.
7. Anti-lock brake system (ABS)
Give full play to the effectiveness of the brakes, shorten the braking time and distance, which can effectively prevent the vehicle from sliding and flicking during emergency braking. It has good driving stability and steering maneuverability, avoids violent friction between tires and the ground, and reduces tire wear.
04. Advantages of self-loading garbage trucks
1. High degree of automation
The self-loading garbage truck has the characteristics of convenient loading and unloading, a high degree of automation, and high working efficiency. A video viewing device for operations is installed in the cab to view the status of garbage loading and unloading operations, as well as an automatic noise detection recorder, data storage, and online transmission devices.
2. Advanced and reliable hydraulic operating system
The hydraulic control system of the self-loading garbage truck adopts the three-position four-way electromagnetic reversing valve imported from Italy, which is characterized by small size, long service life, reliable performance, convenient operation, and automatic operation devices for the opening of the rear door and the turning of the car body. The garbage in the stuffer can be automatically removed. That is, when unloading, the operation of the stuffer scraper can be controlled on the side of the cab or the carriage to remove the garbage in the stuffer and its hopper.
3. Lightweight design of the car body, large load capacity
The body material of the self-loading garbage truck body can be manganese steel instead of traditional carbon steel, and its own weight is more than 20% lighter than the body of similar vehicles. Therefore, the product design is conducive to energy saving and emission reduction, and reduces fuel consumption for users, and reduces the cost of product use.
4. Advanced design of back door mechanism
The back door design of the carriage is advanced, the structure is compact and reasonable, and the width is small. It makes more space for the width of the carriage, makes the width of the carriage larger, and makes it easier for the driver of the car to dock with various garbage compression stations, which is beneficial Improve work efficiency and avoid the occurrence of accidents that scratch and bump the car during the docking process of the car and the station.
5. The whole vehicle is beautiful in appearance, easy to clean and self-clean
The self-loading garbage truck adopts the frame structure of the door frame, which is more convenient than the frame structure of the traditional dump truck, and the visual is beautiful and smooth; because there is no horizontal frame in the compartment, it is not easy to retain dirt; especially on the top, avoiding the frame of similar models The rainwater cannot be drained out, and it is easy to cause insufficient corrosion acceleration on the top of the carriage. The external surface materials of this product adopt surface treatment processes such as phosphating, and the topcoat has strong adhesion, corrosion-resistant, and smooth surface, which is convenient for cleaning the whole vehicle, and its self-cleaning performance is much better than similar models.
