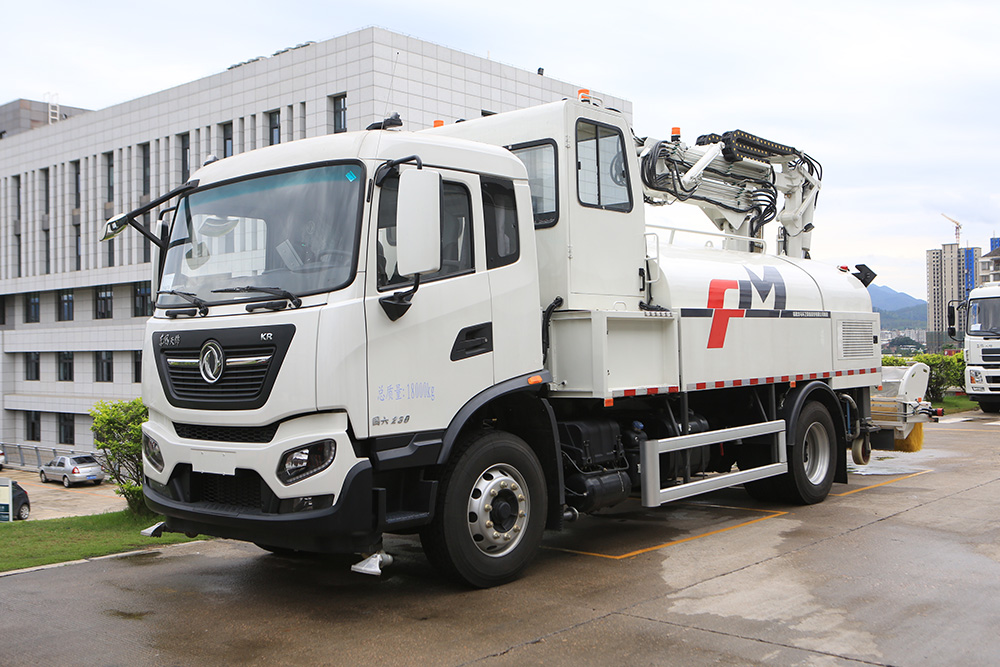

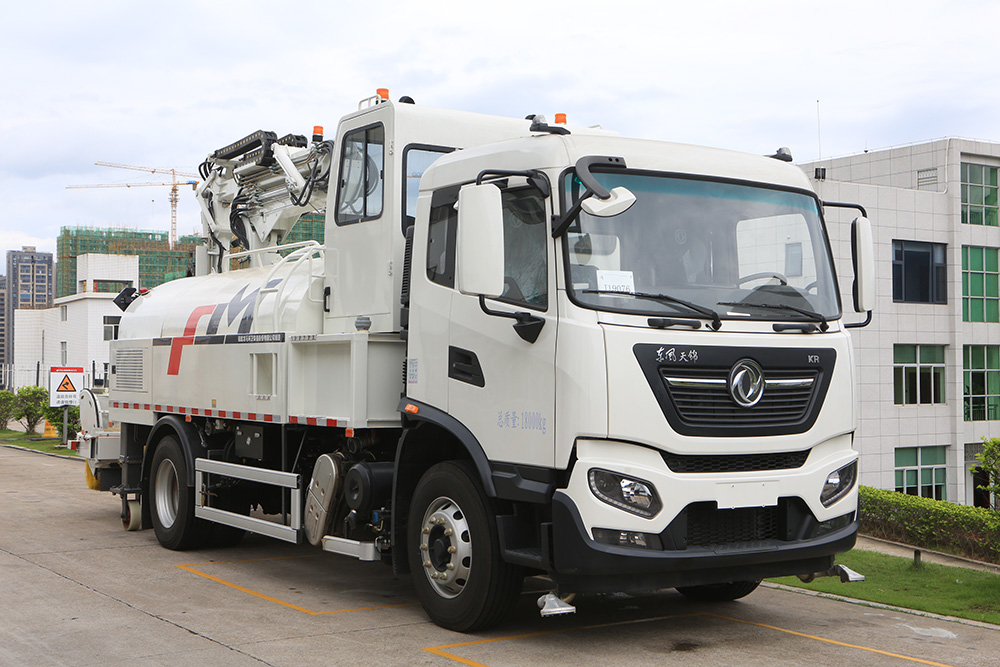

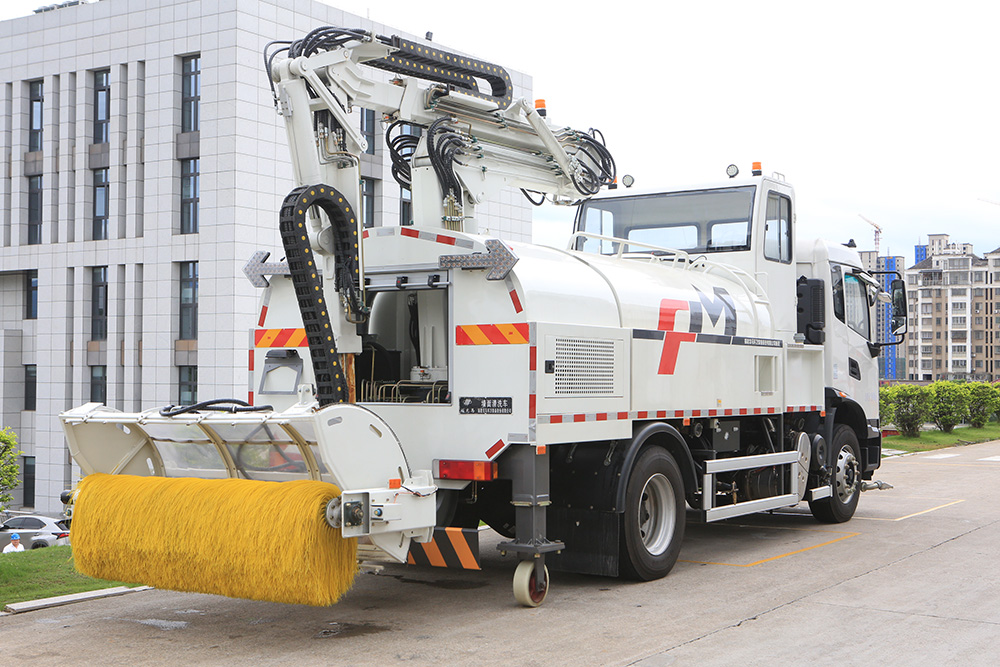

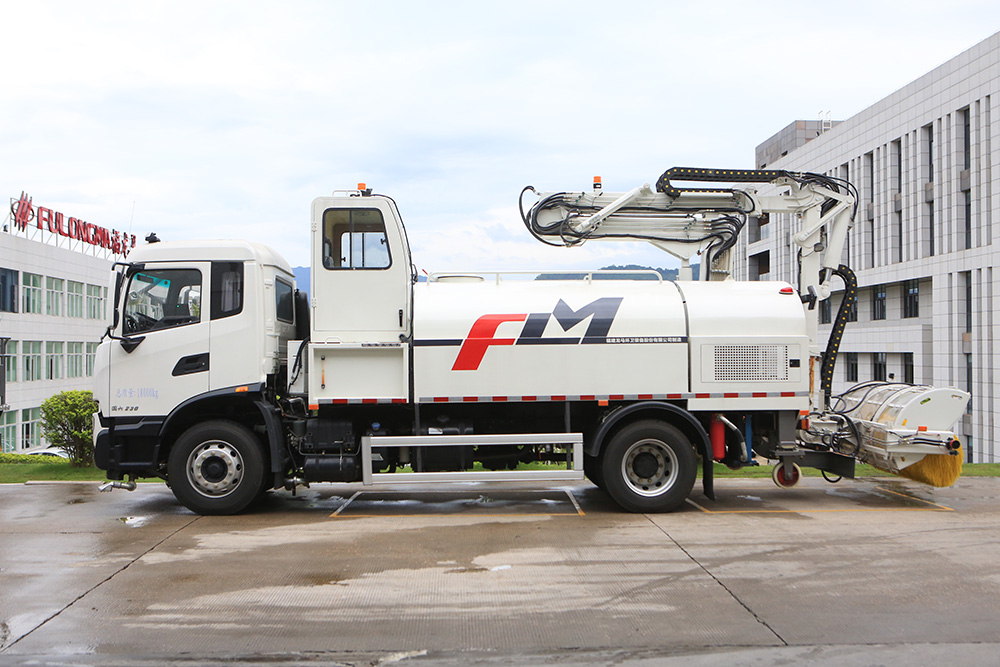

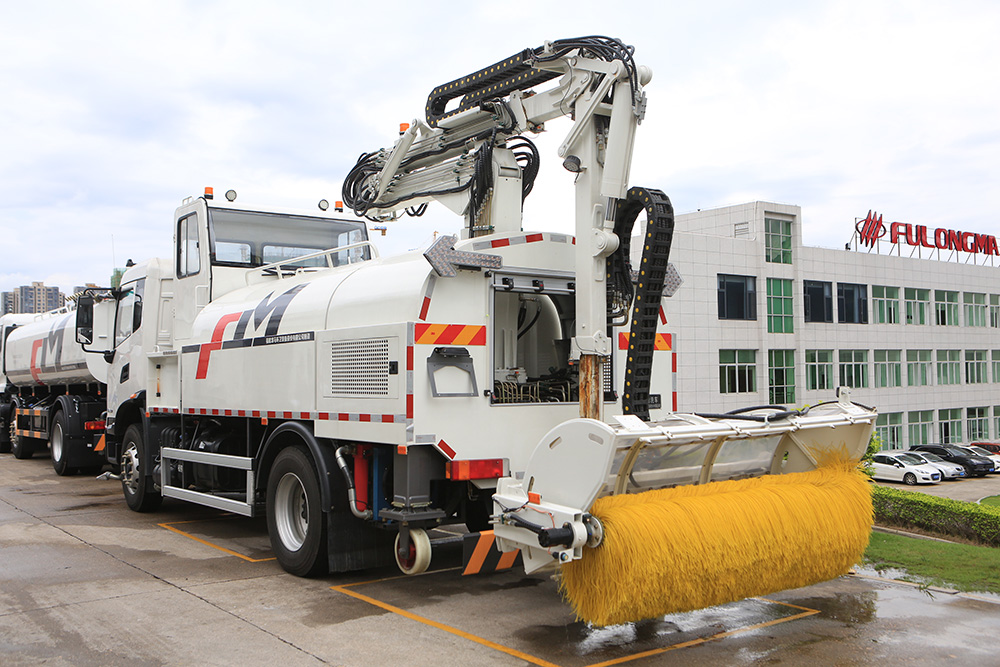

The FULONGMA tunnel wall cleaning vehicle is a dual-engine, dual-pump cleaning vehicle. It is equipped with a high-pressure flushing system and a low-pressure flushing system on the basis of the standard second-class chassis. It is a combination of mechanical, hydraulic, and electrical parts. Operating vehicle. This car has two independent high and low-pressure water systems, which provide pressure water sources for cleaning the car.
01. Working principle of tunnel wall cleaning truck
The high-pressure water produced by the high-pressure water pump is sprayed out through the high-pressure nozzle of the water spray frame, and the kinetic energy of the high-pressure water flow is used to clean with high pressure and low flow, powerful decontamination, efficient water-saving, and can isolate roads, sidewalks and guardrails Clean the old stains in the area. The use of high-pressure spray rods can also clean road signs, billboards, elevated roads, etc. The spray system has powerful spray dust reduction, air disinfectant spray, and air humidity adjustment functions.
02. Performance characteristics of tunnel wall cleaning truck
1. The cleaning brush is made of bristles made of special composite cleaning materials, with a good cleaning effect and long service life.
2. The machine adopts 2 joint folding support arms, with a large working radius and high efficiency.
3. Driving PLC computer integrated control, the driving device can rotate freely, it is convenient to move the cleaning brush and change the construction position.
4. Equipped with a high-pressure water gun to facilitate washing the vehicle and the road surface.
5. With automatic barrier function, it can automatically detect and maintain the relative position of the cleaning wall (or obstacle) and the cleaning brush to avoid collision between the cleaning brush and the wall (or obstacle) to prevent damage to the cleaning brush.
6. According to construction needs, the cleaning brush can be rotated left and right in the plane of the axis of the vertical coupling device, and can be locked every 30 degrees.
7. The water tank and piping system are all made of corrosion-resistant materials.
8. The washing tank is embedded in the water tank, and the washing liquid is added during the cleaning so that the cleaning operation can be performed better and faster.
03. Product description of tunnel wall cleaning truck
1. The spray system is located at the rear of the cleaning vehicle and consists of an upper spray pipe and a lower spray pipe. The upper and lower sprays can be used separately or at the same time. The spray system can spray dust and adjust the air humidity.
2. The cleaning width of the water spray rack can be adjusted arbitrarily from 3-3.5M. When the telescopic spray bar is contracted, it can realize double water flow enhanced cleaning.
3. Liftable width indicator lights are installed at the left and right telescopic boom ends. The width indicator poles can be raised during operation and lowered when driving.
4. The car greatly reduces the labor intensity of the staff, is convenient and fast, and improves work efficiency.
