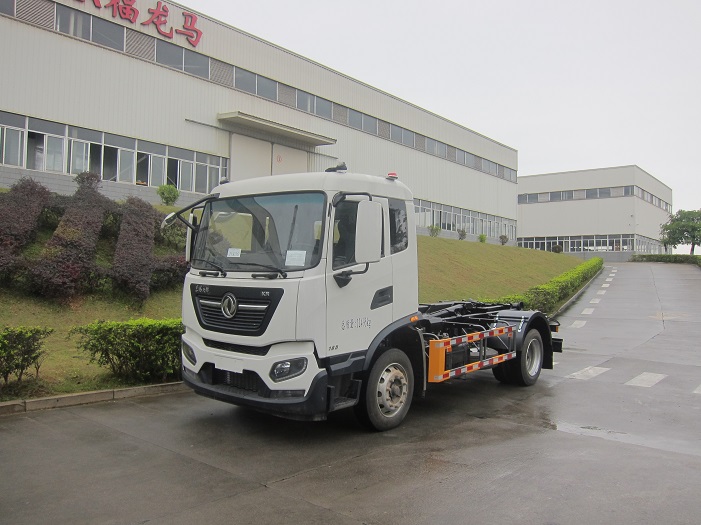

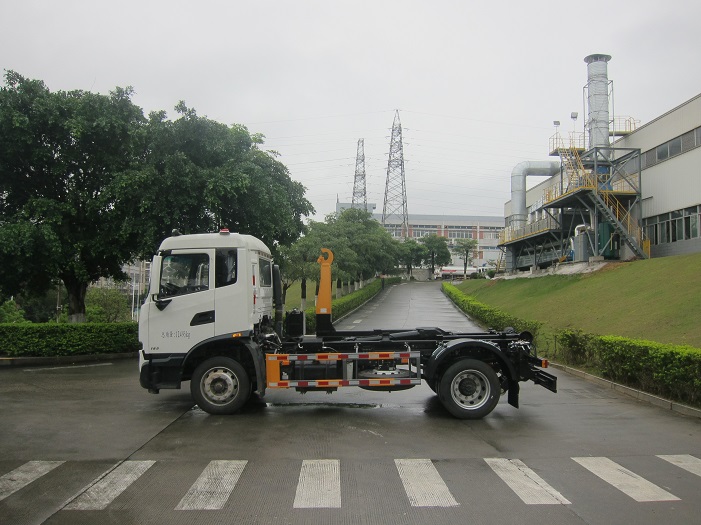

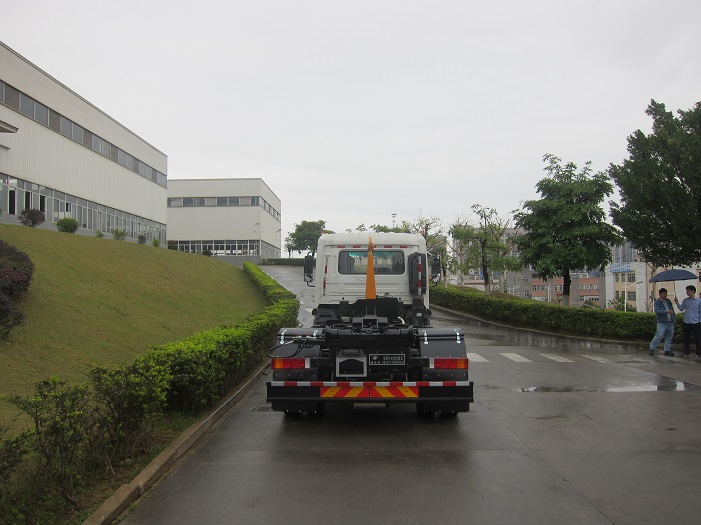

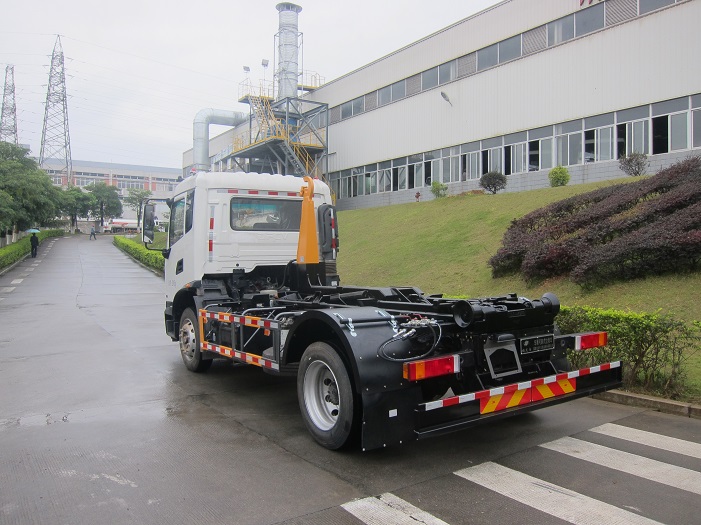

Detachable Container Garbage Collector – FLM5120ZXXDF6

This carriage detachable garbage collection truck is the latest garbage collection and transferring truck which designed to meet different customers’ needs. This truck is suitable for the garbage collection and transportation for the place where larger truck cannot enter, such as small streets, communities, factories, living area and campus, etc.



Main Parameters

Maximum Lifting Capacity of Hook arm(t)

1.5

Maximum Dumping Angle (°)

50

Packing Working Time (s)

≤35

Unloading Working Time(s)

≤45

Discharge Work Cycle Time(s)

≤70

FEATURES

It integrates loading, transportation and self-unloading, no auxiliary equipment is needed, and the operation is convenient and simple.

One car with multiple boxes, circulating transportation, improving the efficiency of vehicle use and reducing costs.

The hook arm system adopts the power take-off system and the power take-off output. Compared with the electromagnetic clutch power take-off method of similar models, the installation and maintenance are more convenient and reliable, and the push-pull flexible shaft is used to control the power take-off output and close, which truly realizes driving. Separated from the operation, which improves the life of the power take-off system.

The hook arm device adopts a linkage structure, which integrates operation mode switching, lock box and flip frame limit, simplifies the operation control system, protects the lifting cylinder, reduces the failure rate of the hook arm, and extends the service life of the hook arm;
All operations can be completed in the cab, the operation is simple and convenient, reducing the labor intensity of the operator.

The hook arm is made of high-quality steel plate with high wear resistance and durability; the safety lifting hook is made of high-strength wear-resistant steel, which is firm and reliable.

The connection between the chassis and the hook arm system is made of high-quality steel plate, which is safe, stable and reliable.

The safety lock of the box is safe and reliable. When the vehicle is driving, the box will not shake.

Optional inner lock pull arm hook can increase the range of adapting box.

Optional cleaning system, after the garbage is dumped, the vehicle and the box can be self-cleaned, and the sealing tape and the bonding surface of the rear door of the box can be cleaned, effectively improving the service life of the sealing tape and ensuring the garbage bin Long-term sealing performance.
