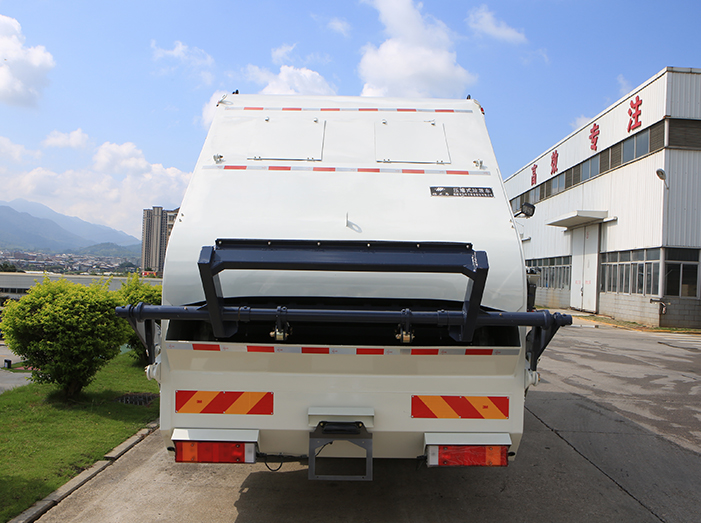

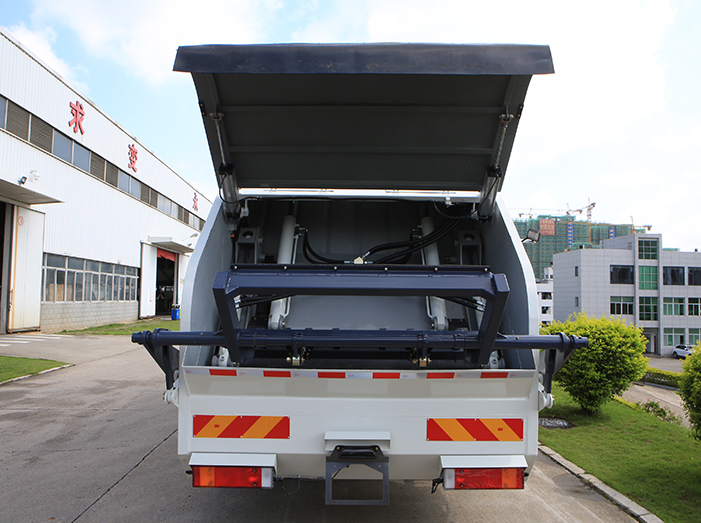

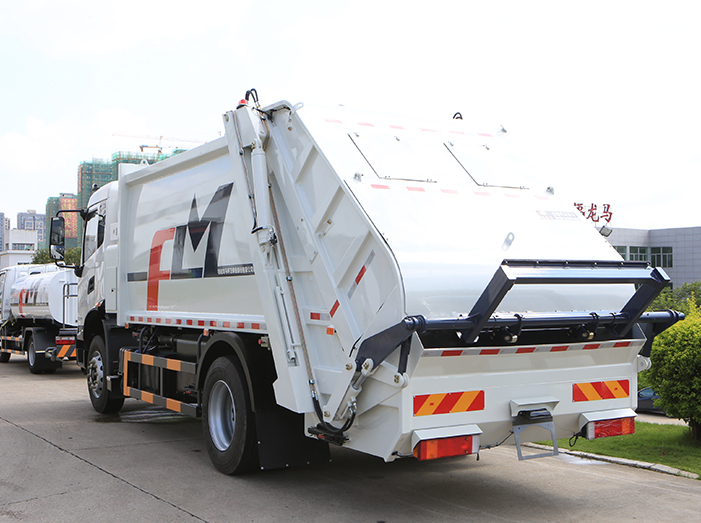

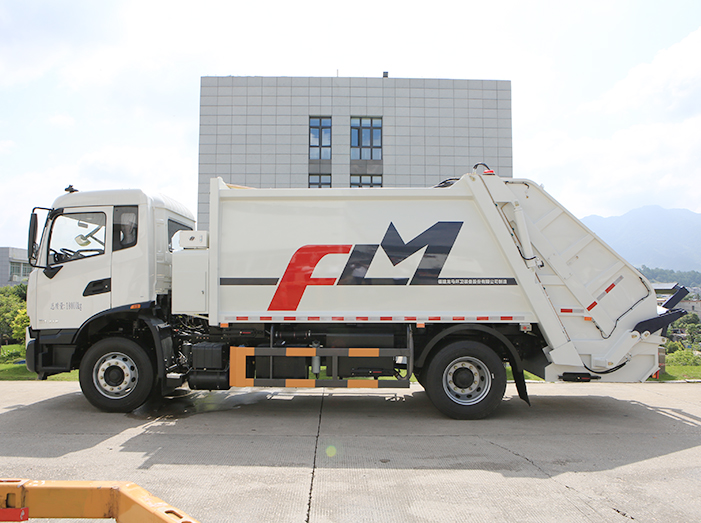

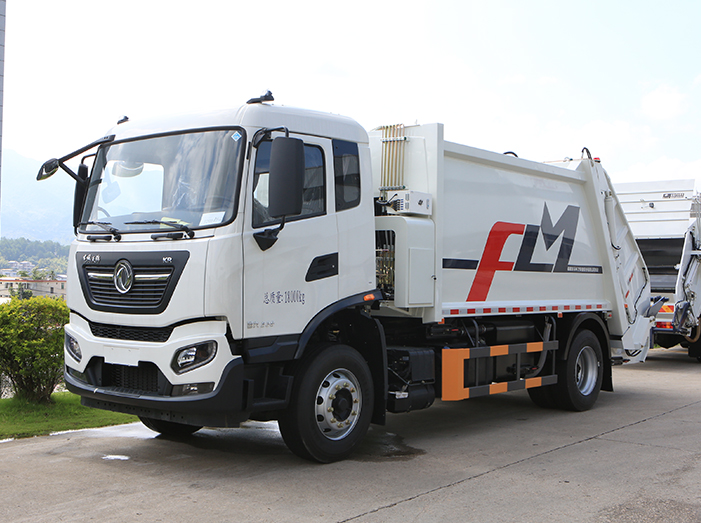

The FULONGMA high-performance garbage compactor truck is a brand-new garbage compression vehicle with a high compression rate, large loading capacity, fast operation efficiency, and low noise. It can comprehensively solve the common problems such as small capacity, small compression force, and low operating efficiency of compression vehicles. The vehicle operates closer to market demands.
|
Refuse Container Capacity (m³) |
13.3 |
|
Chassis Model |
DFH1180EX8 |
|
Sewage Tank Volume (L) |
850 |
|
Garbage Compression Density (t/m³) |
0.65~0.8 |
|
Maximum Compression Force (kN) |
210 |
The truck uses a high-strength Japanese U-shaped integrally formed truss slot as the guide rail of the garbage pushing plate, which has strong compression capacity and good deformation resistance.
The main components such as the trash tank are all made of B480GNQR high-strength weather-resistant steel plate produced by Shanghai Baosteel.
The overall frame adopts structural design, which makes the shape simple and beautiful, and increases the effective volume. The overall structure has outstanding performance and strong impact resistance.
The truck is equipped with a large-capacity sewage tank, combined with a diversion type sewage collection device, which can divert the sewage that leaks between the hopper and the garbage tank body due to the failure of the sealing strip to a special sewage collection tank. Effectively prevents secondary pollution caused by sewage leakage.
The joint between the hopper and the tank body adopts adjustable hydraulic locking and sealing technology, which has a good sealing performance.
The sliding block of the push plate is made of high wear resistance alloy material with long service life.
